WII-CLIP V9 --->  Support WIITOP chip

Discuss :  WII-CLIP V9 ---> Support WIITOP chip

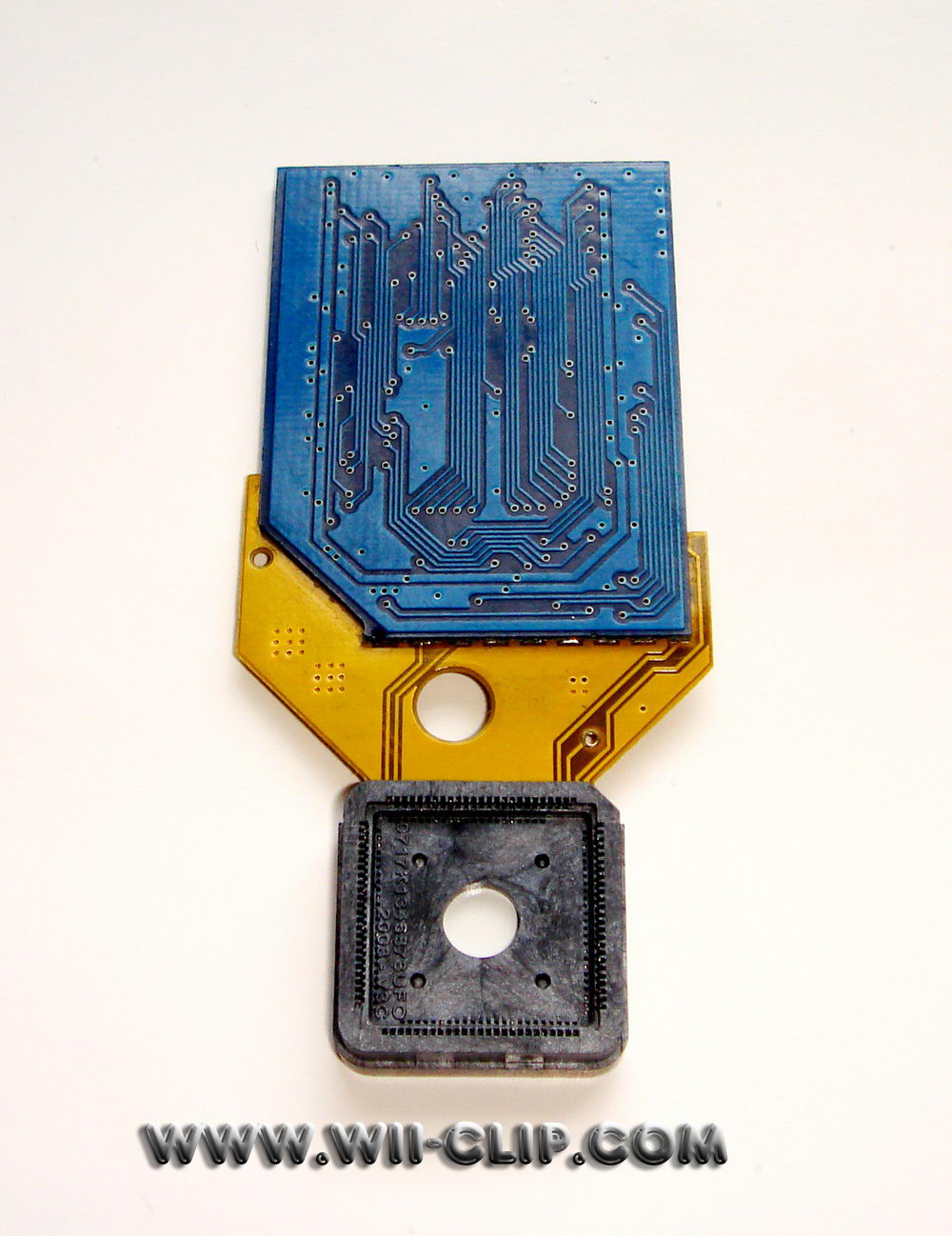

The V9 looking:

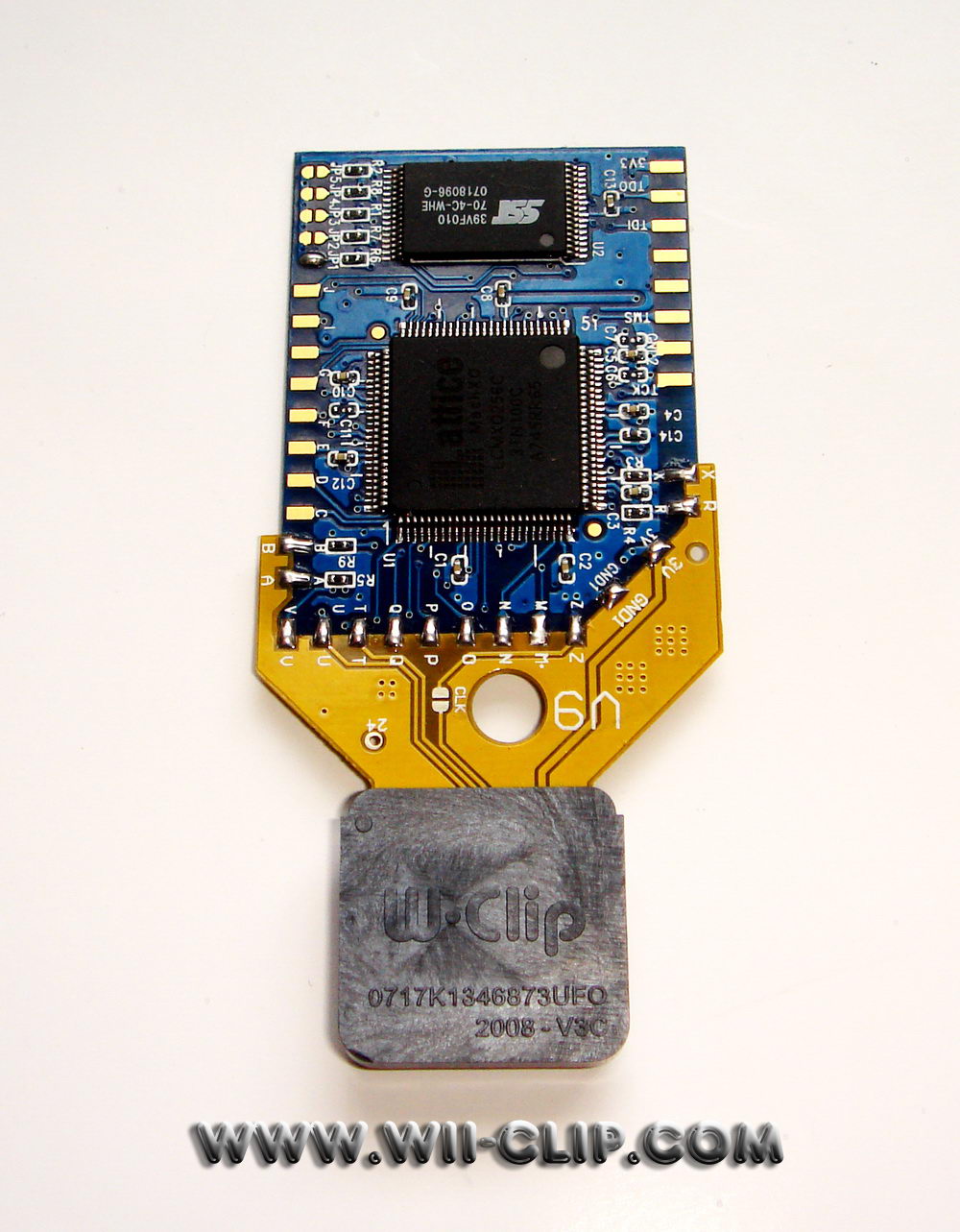

After soldered:

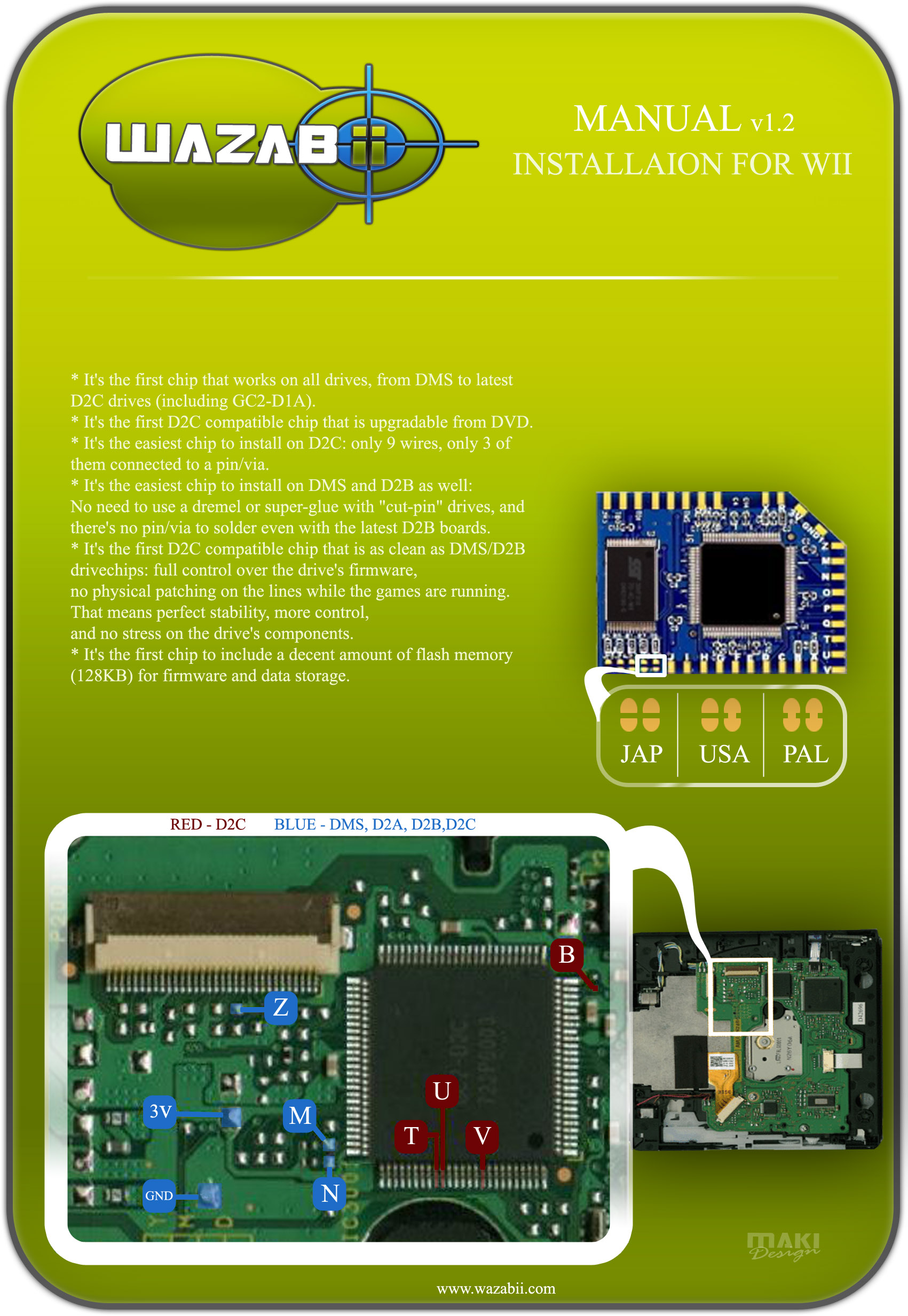

The old WASABI (wazabii) install diagram: 9 wires

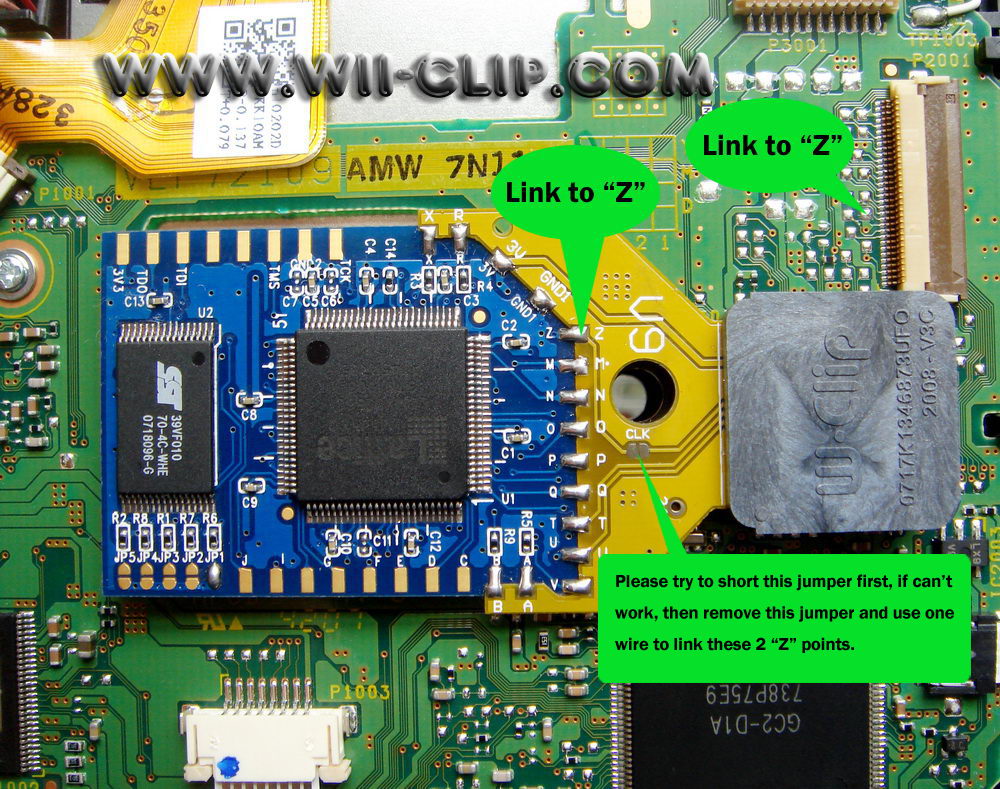

The V9 CLIP install diagram, firstly you just need short the "CLK" jumper, and test it, if it working fine, then  you don't need solder any extra wires again. This way should work with almost wii.

If this way don't work with you, please remove the "CLK" jumper and use one wire to link these 2 "Z" points.

Warning: don't keep the "CLK" jumper and link 2 "J" points at the same time!
