WII-CLIP V8 --->  Support D2LITE 15 wires version

Discuss :  WII-CLIP V8 ---> Support D2LITE 15 wires version

Status: In stock.



The WII-CLIP V8 for D2Lite looking



The D2Lite and V8:



After soldered:

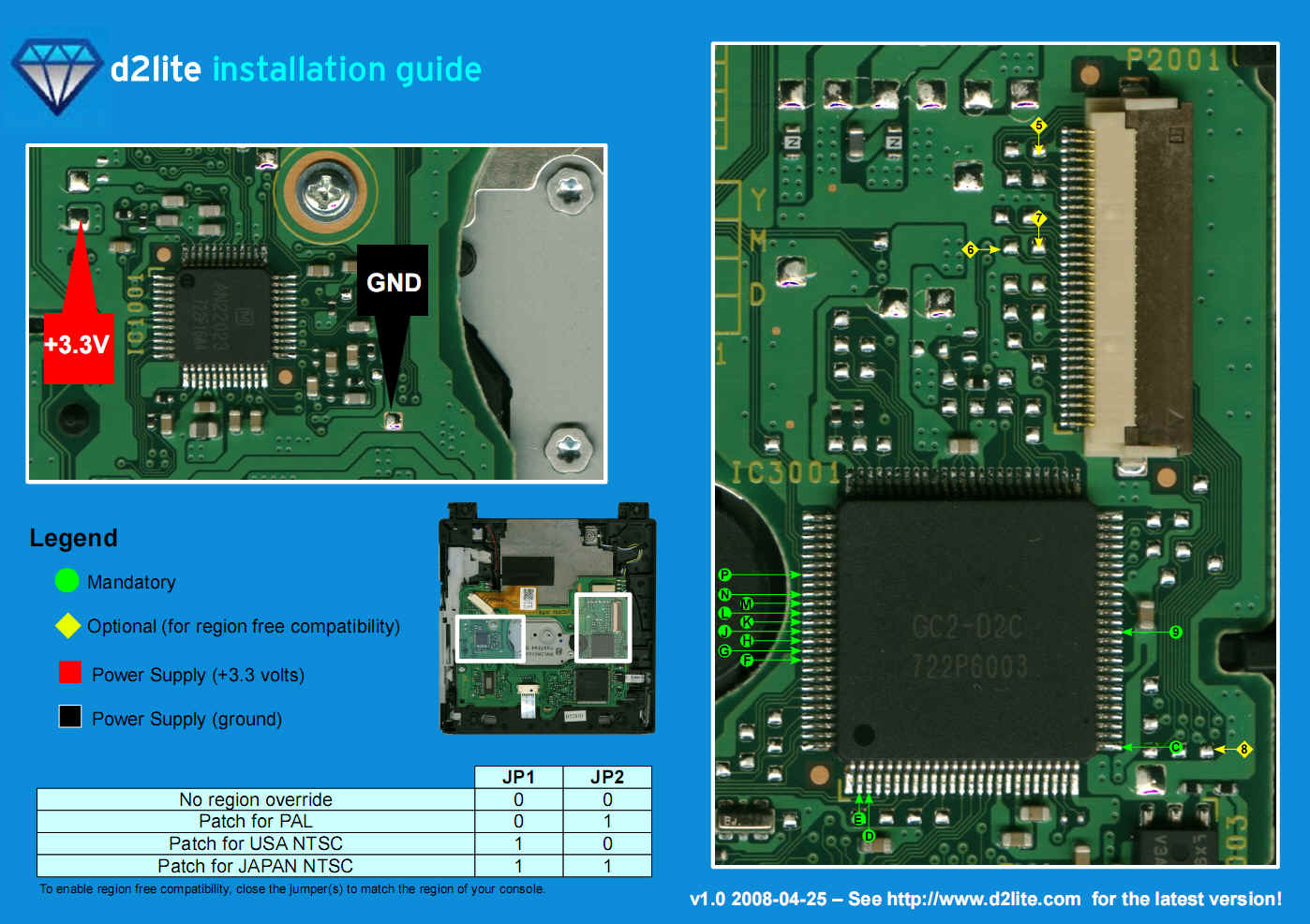

The old install diagram --- 15+4 wires:





investing

The new WII-CLIP install diagram: Plug and Play, 0 wires
If you don't need the region free function, just pass the next step.

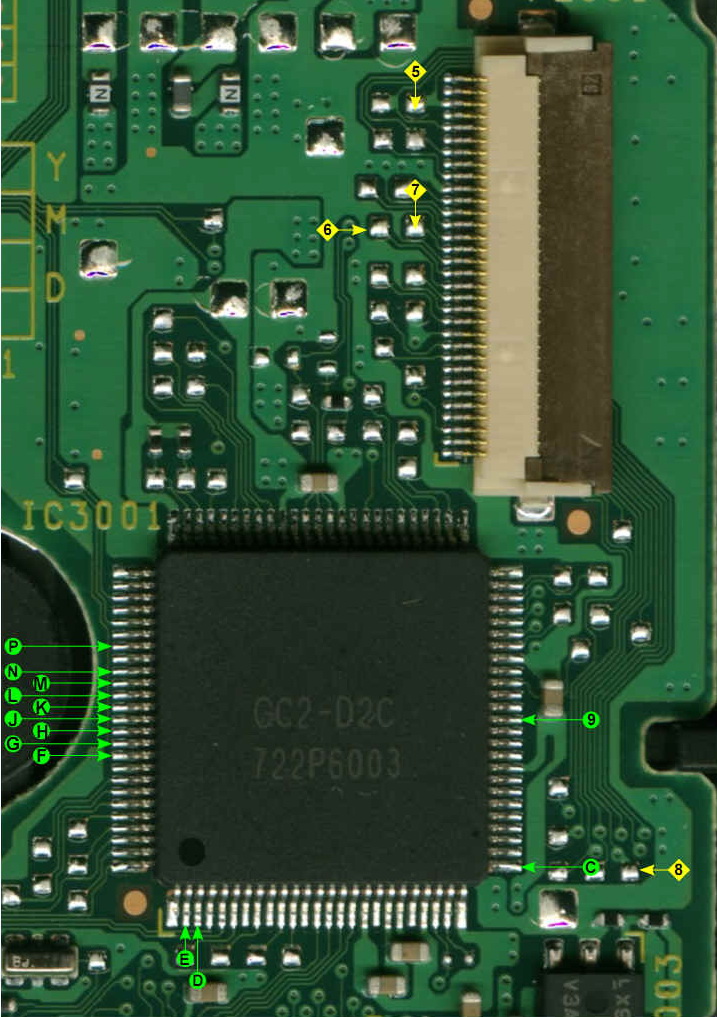

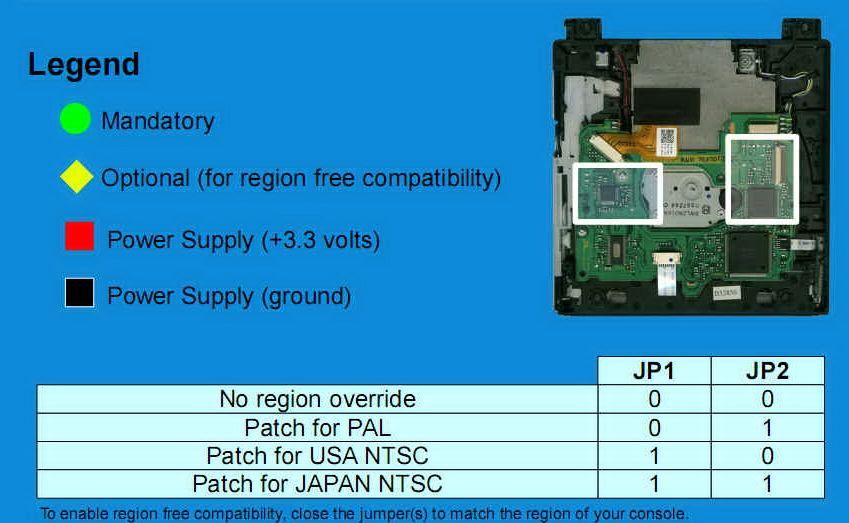

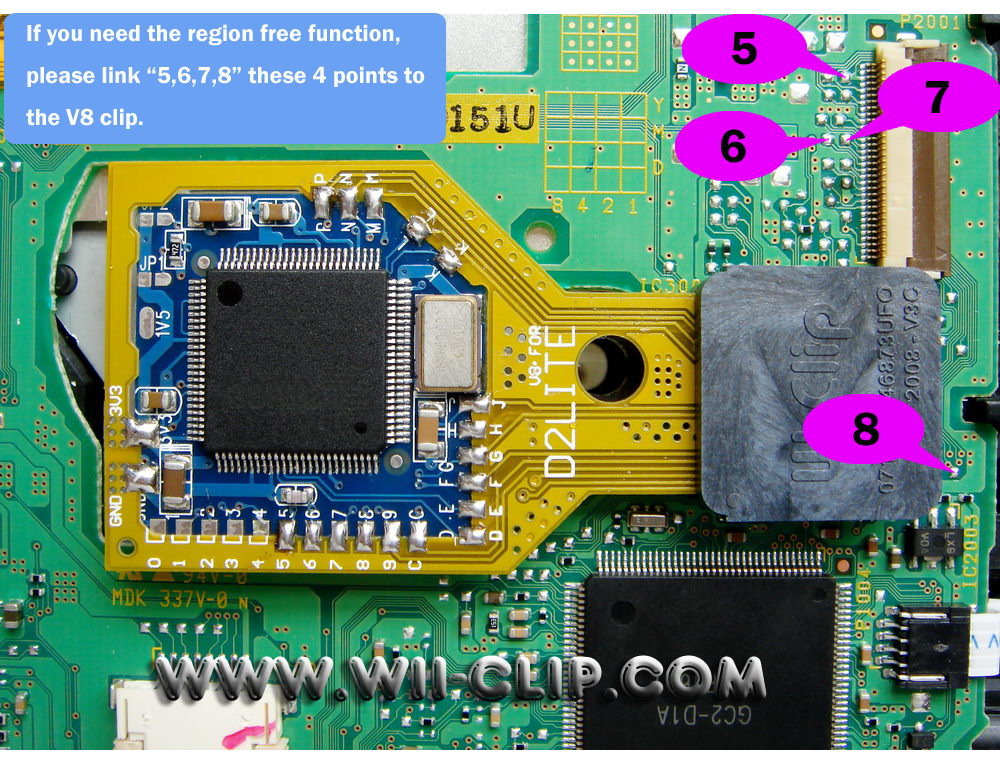

If need use region free option, then need solder  5 / 6 / 7 / 8  four wires) , and short the "JP1" & "JP2" to match your region:

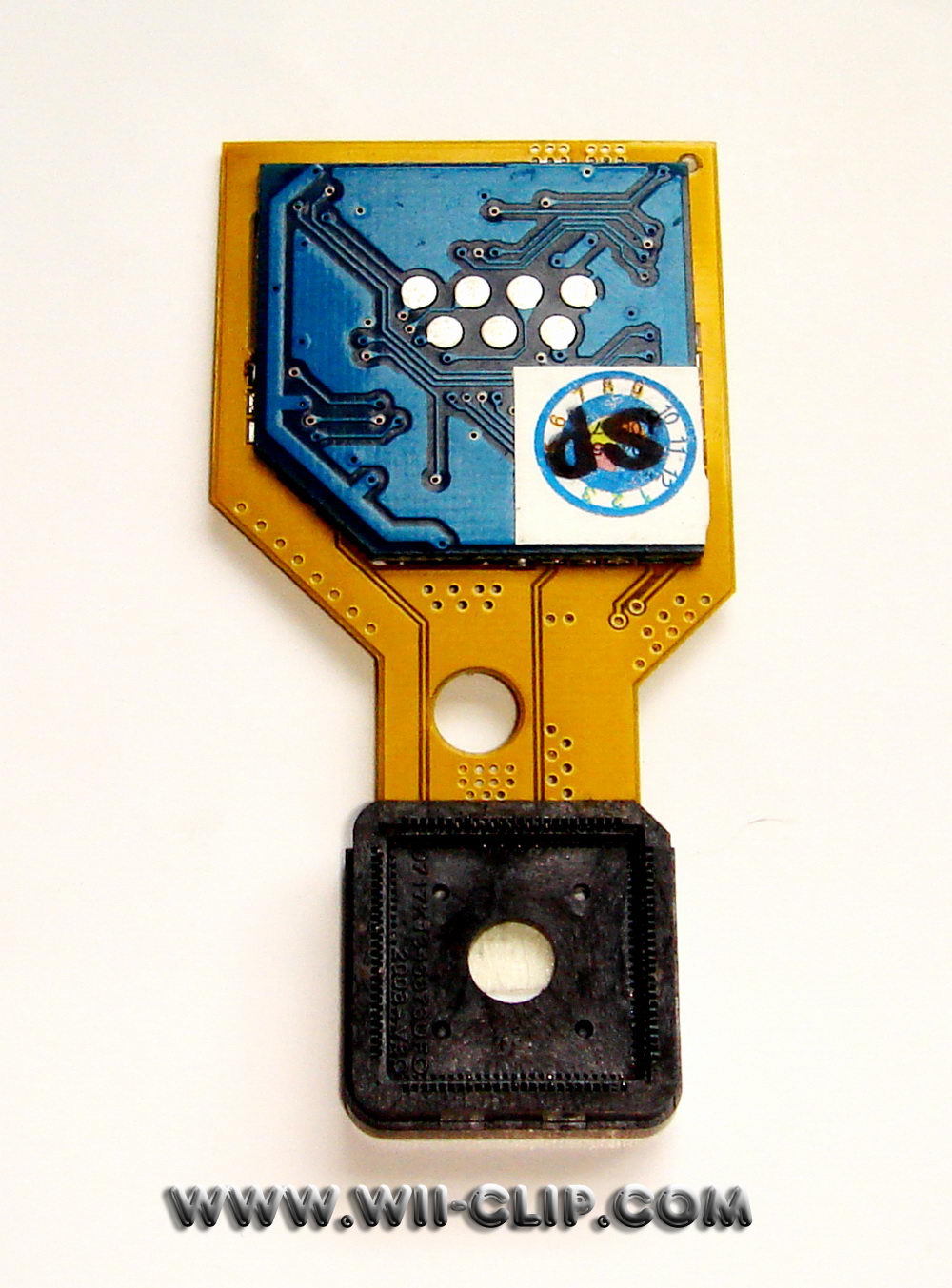

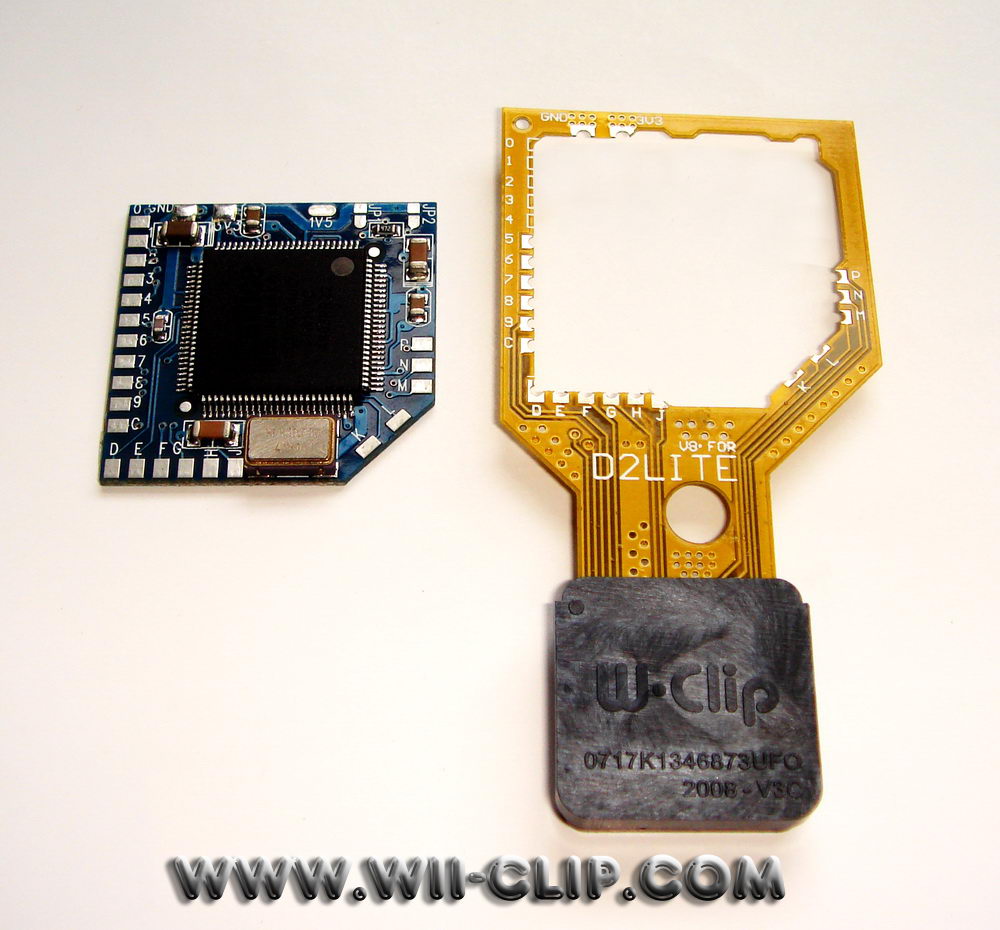

The contents in the retail packing:



The retail packing:





investing
investing Counter
