WII-CLIP V5B --->  Support WASABI and D2SUN both version

Discuss :  WII-CLIP V5B ---> Support WASABI and D2SUN both version

Status: In stock now.

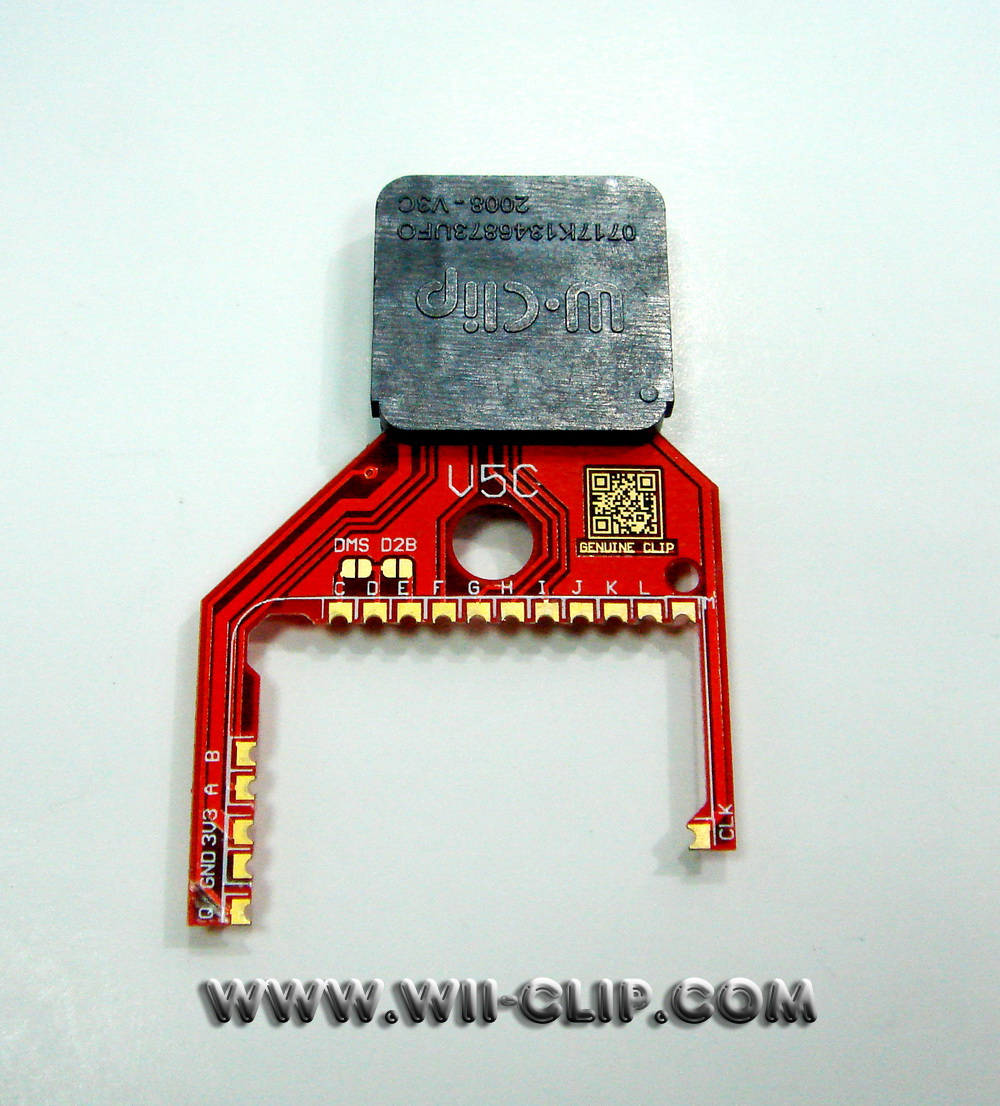

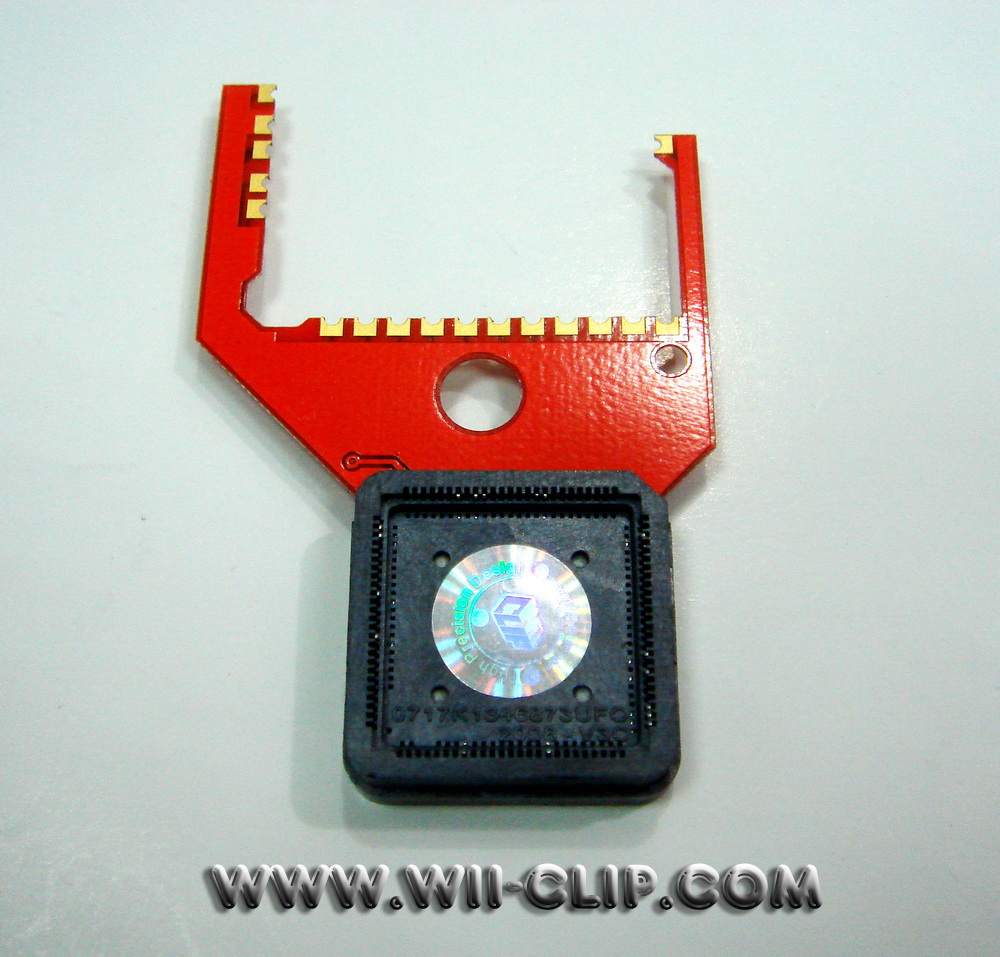

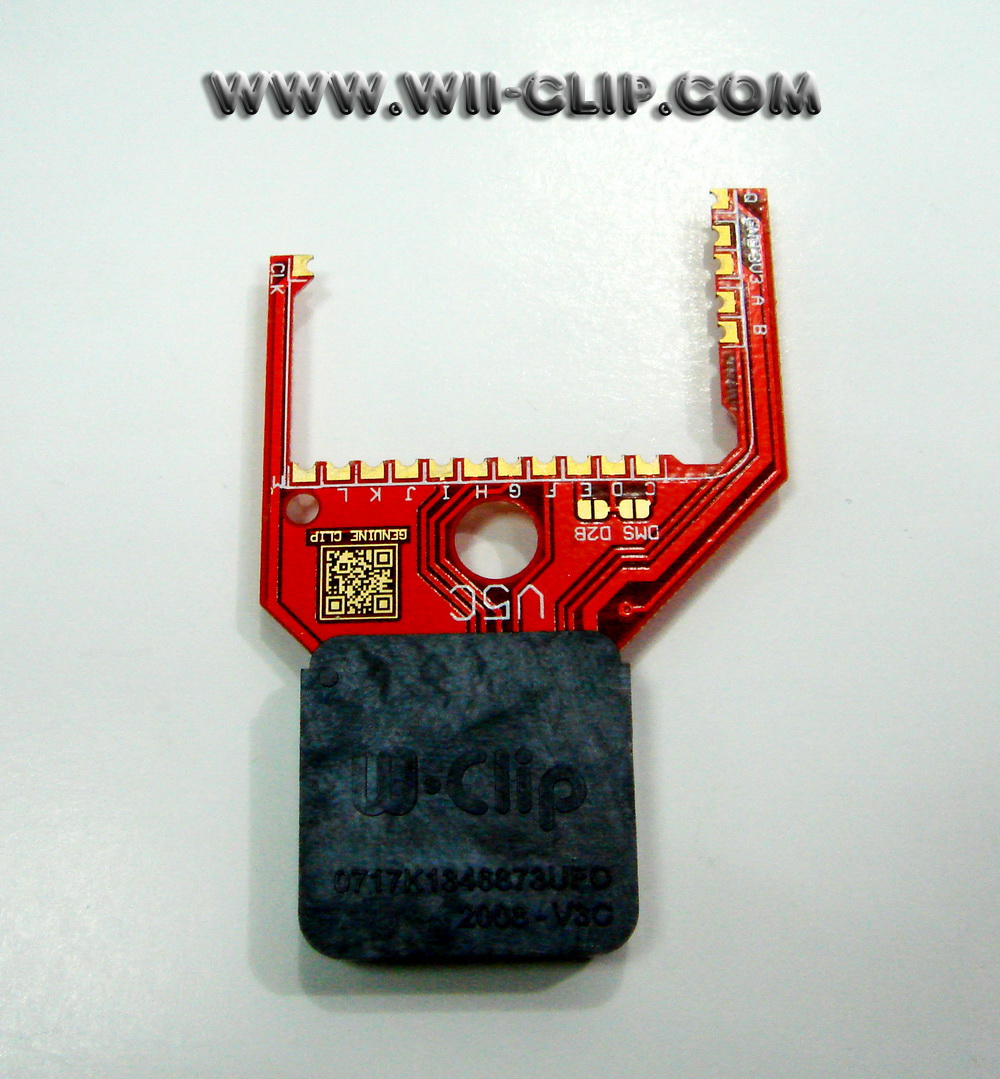

The last WII-CLIP V5C for D2SUN / Wasabi chips looking:

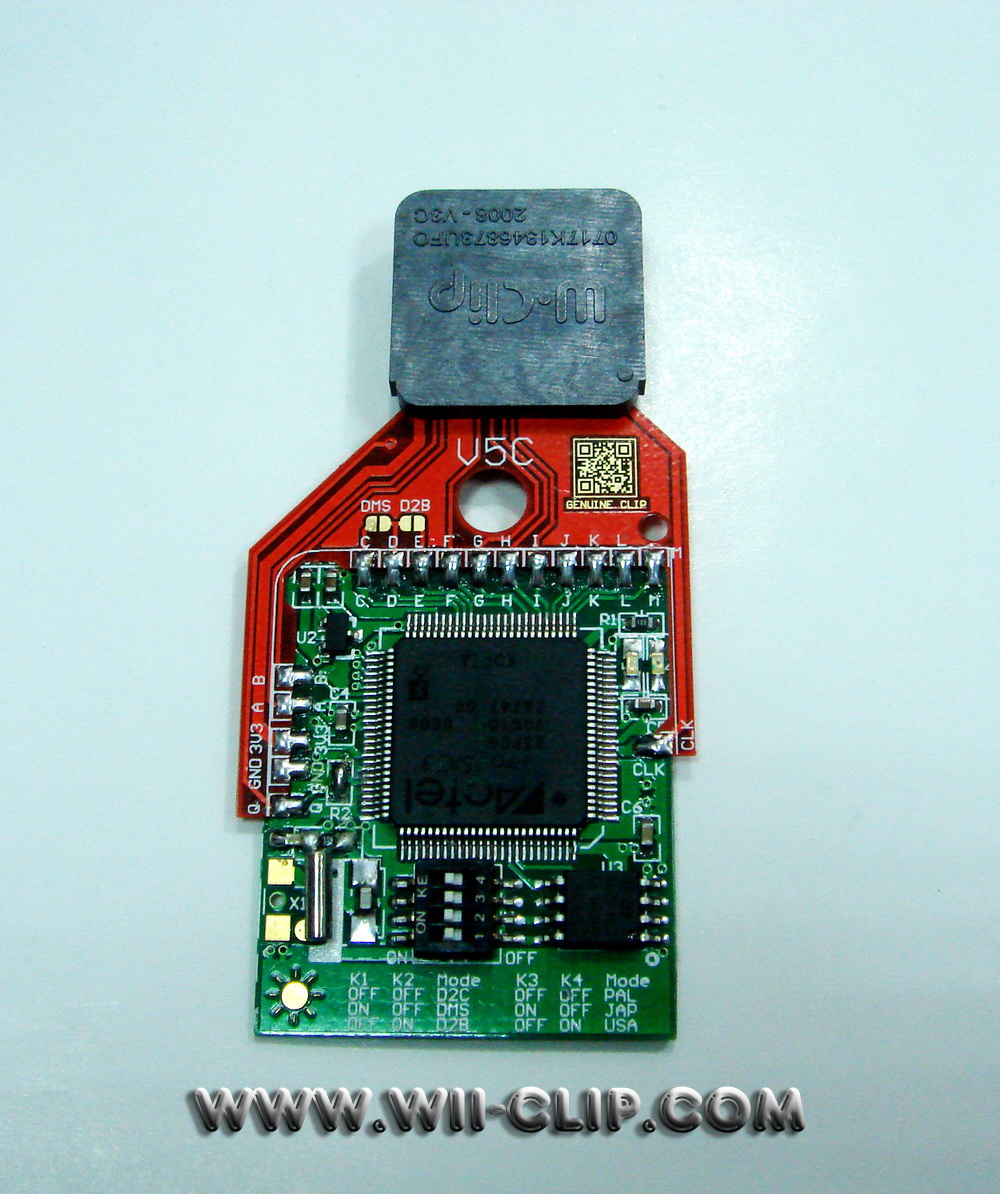

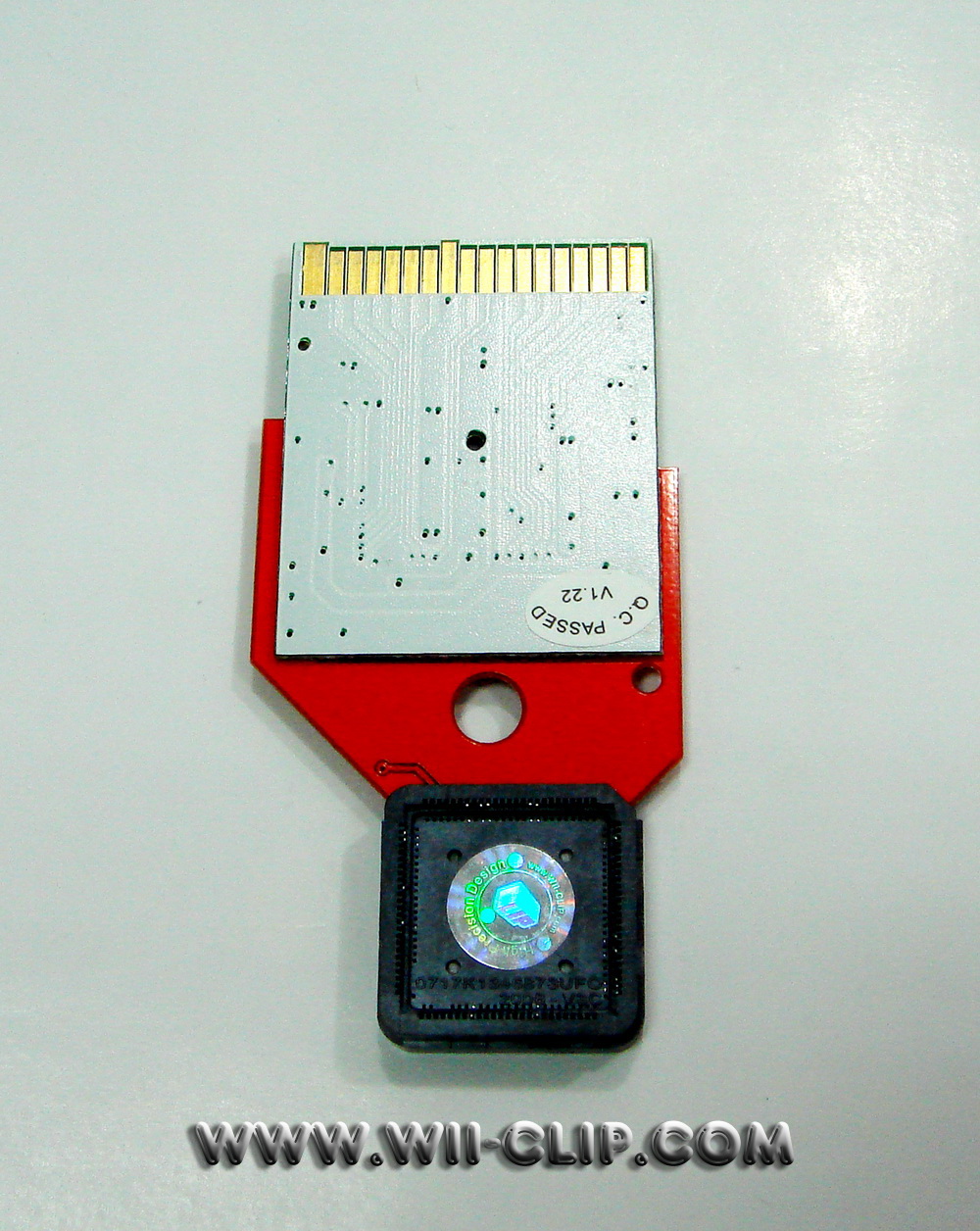

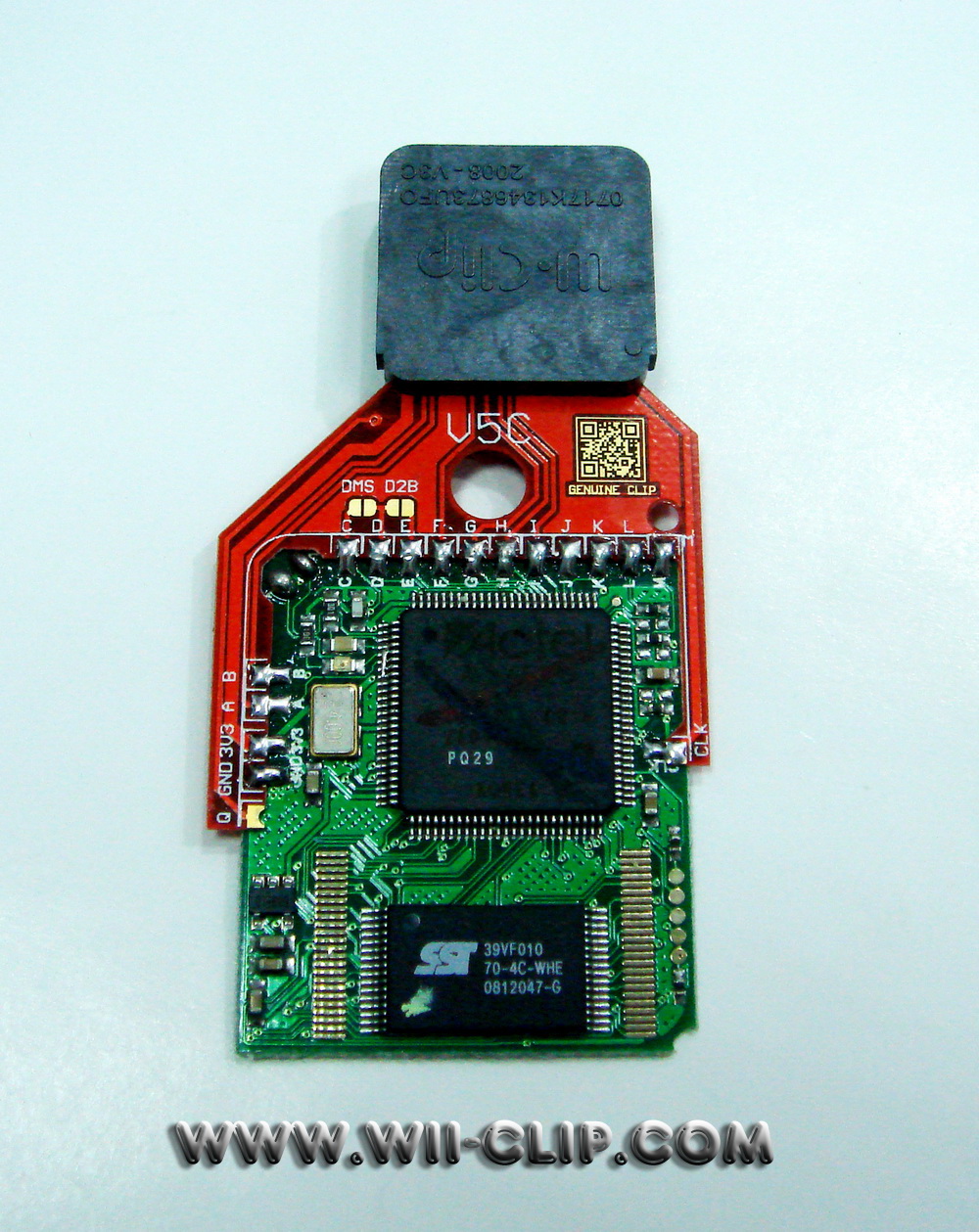

After D2SUN soldered:

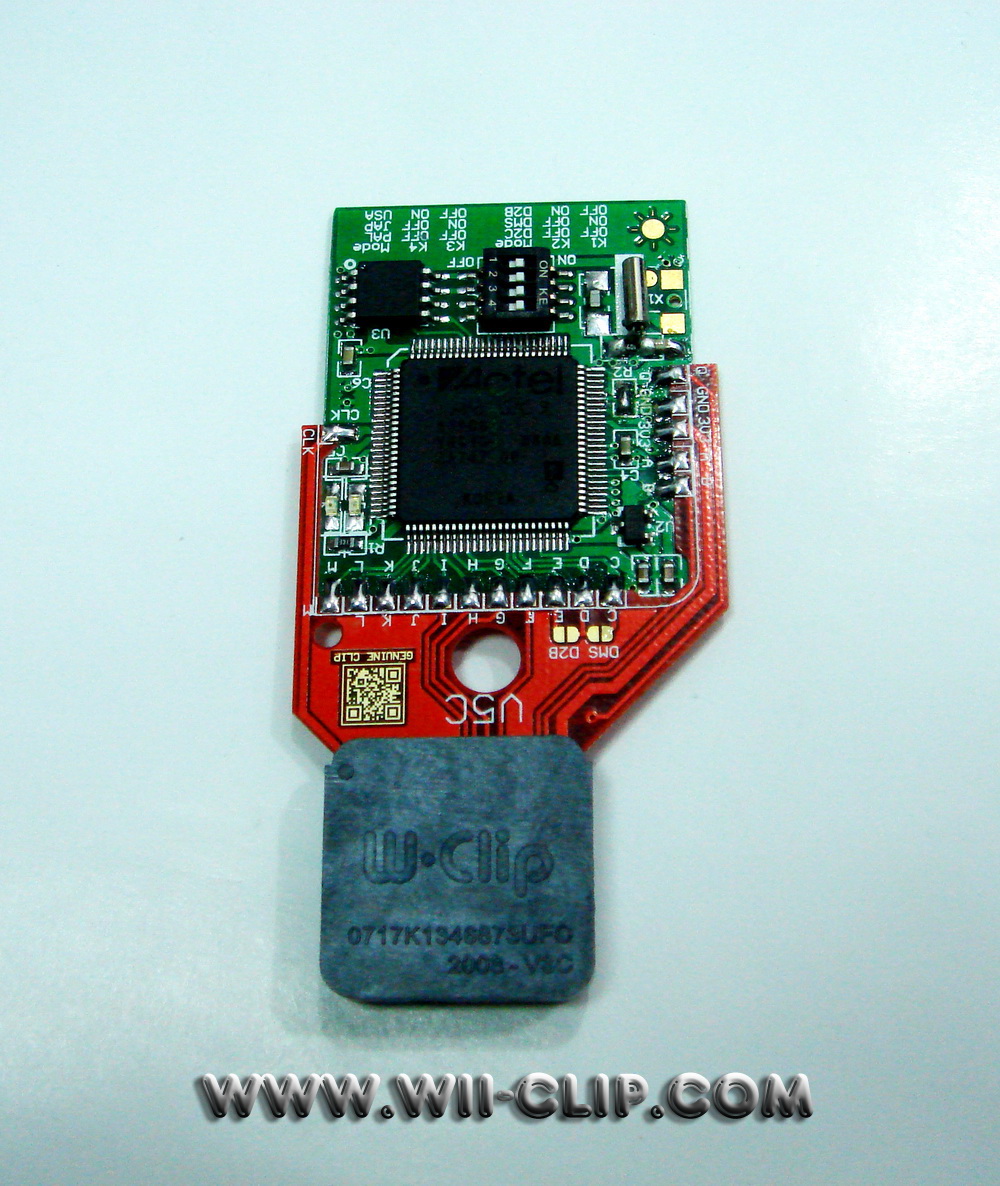

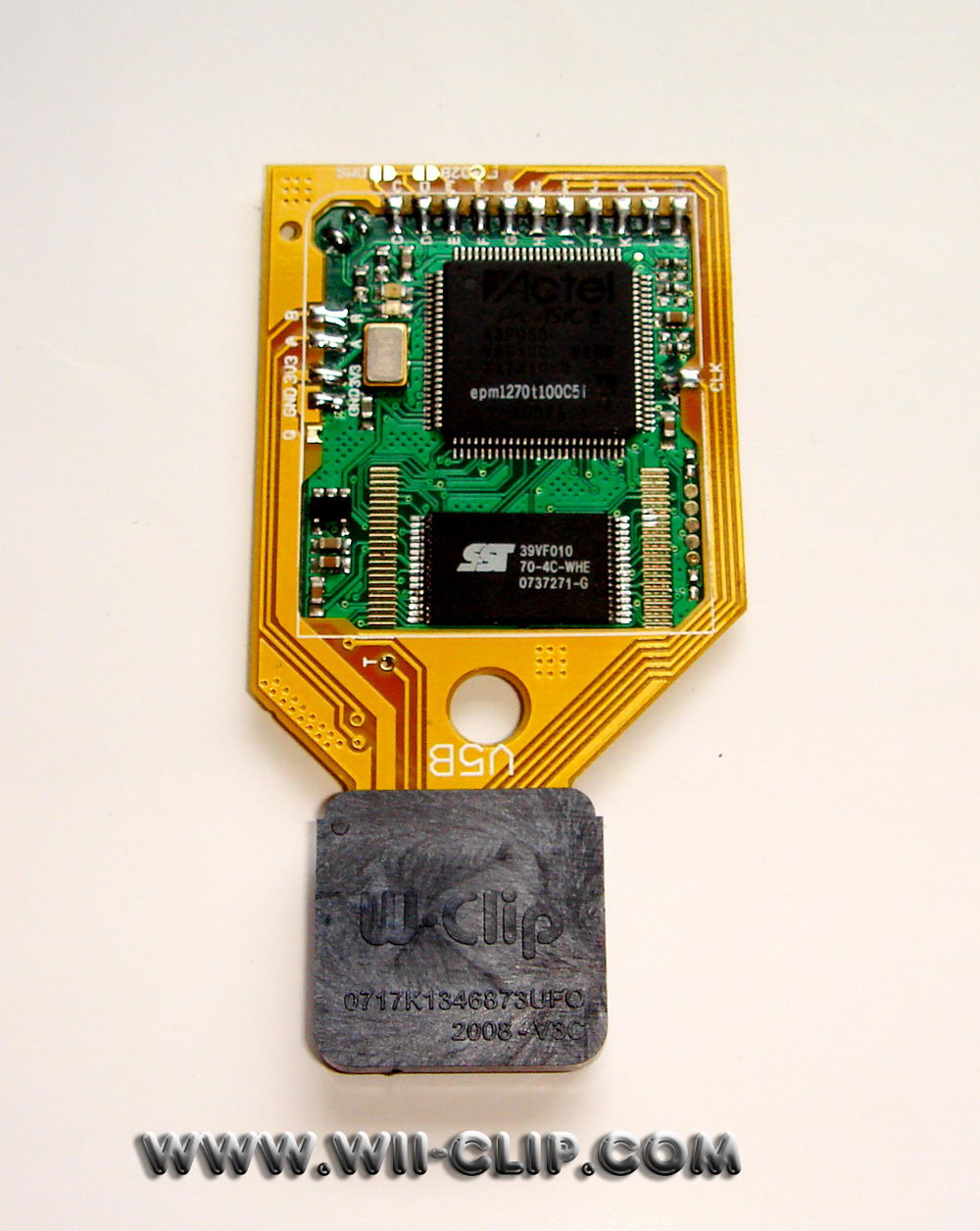

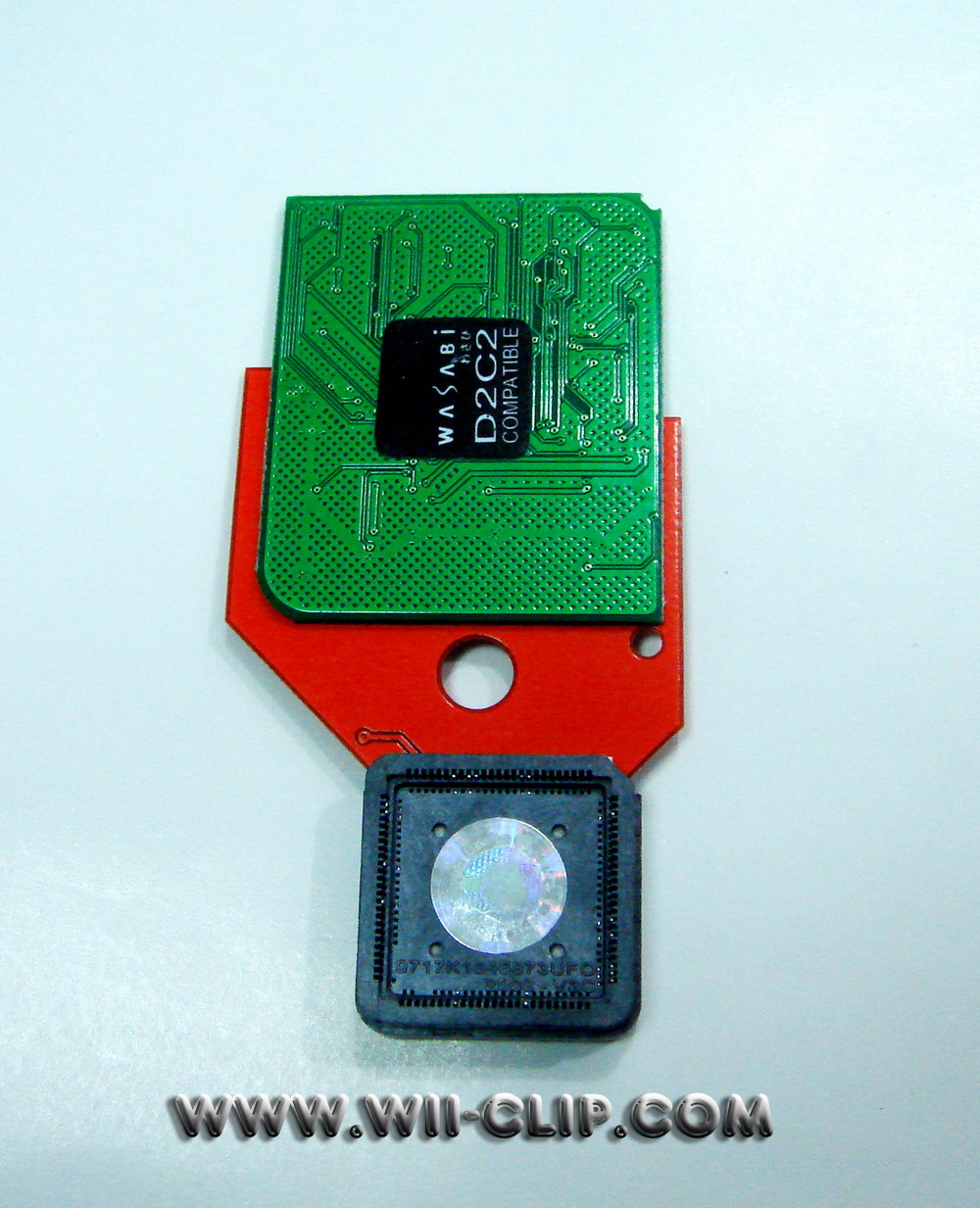

After Wasabi soldered:

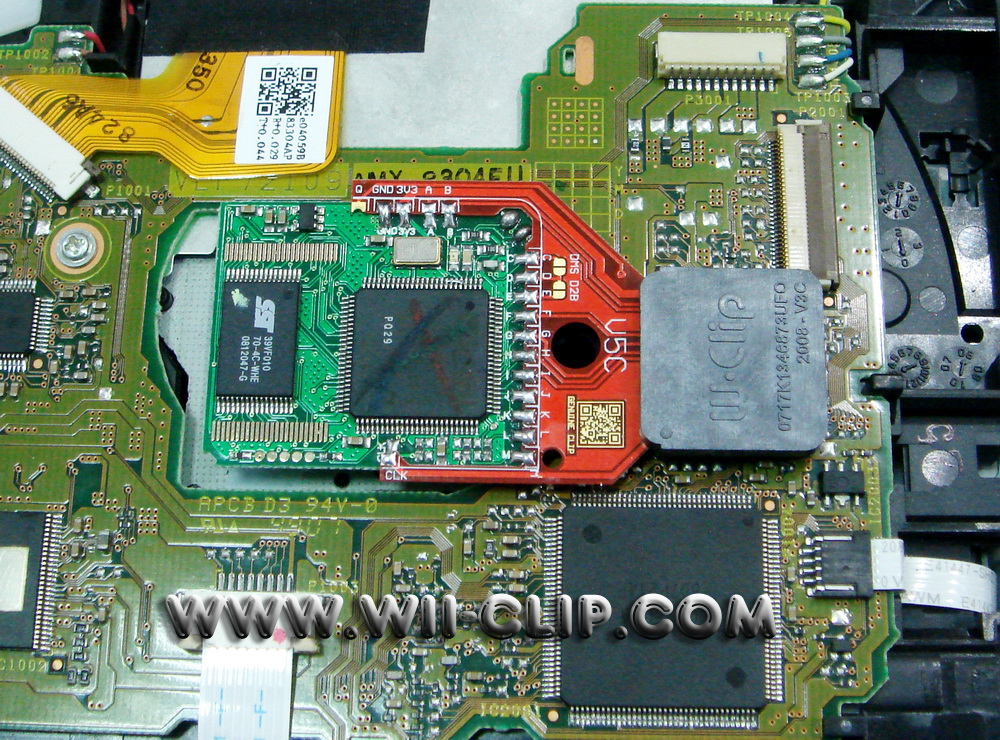

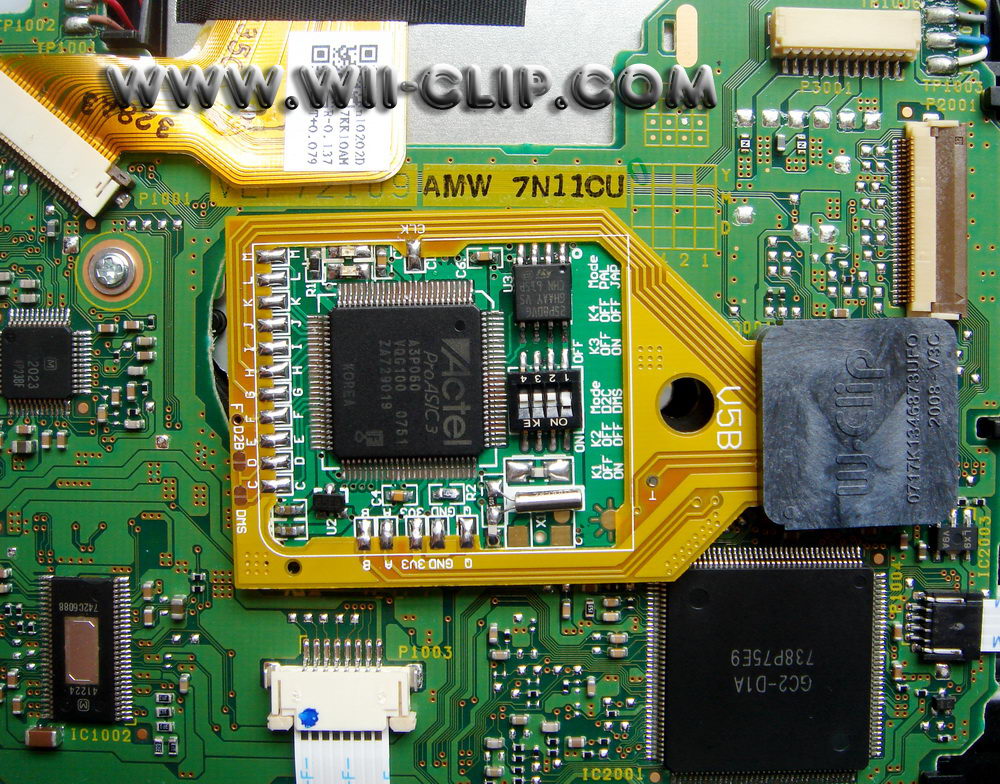

The new WII-CLIP V5C for Wasabi install diagram: Zero wire need solder, plug and play!







The new WII-CLIP V5C for D2SUN install diagram: Zero wire need solder, plug and play!









The retail packing:



===========================================================================================================



The WII-CLIP V5B for D2SUN looking:

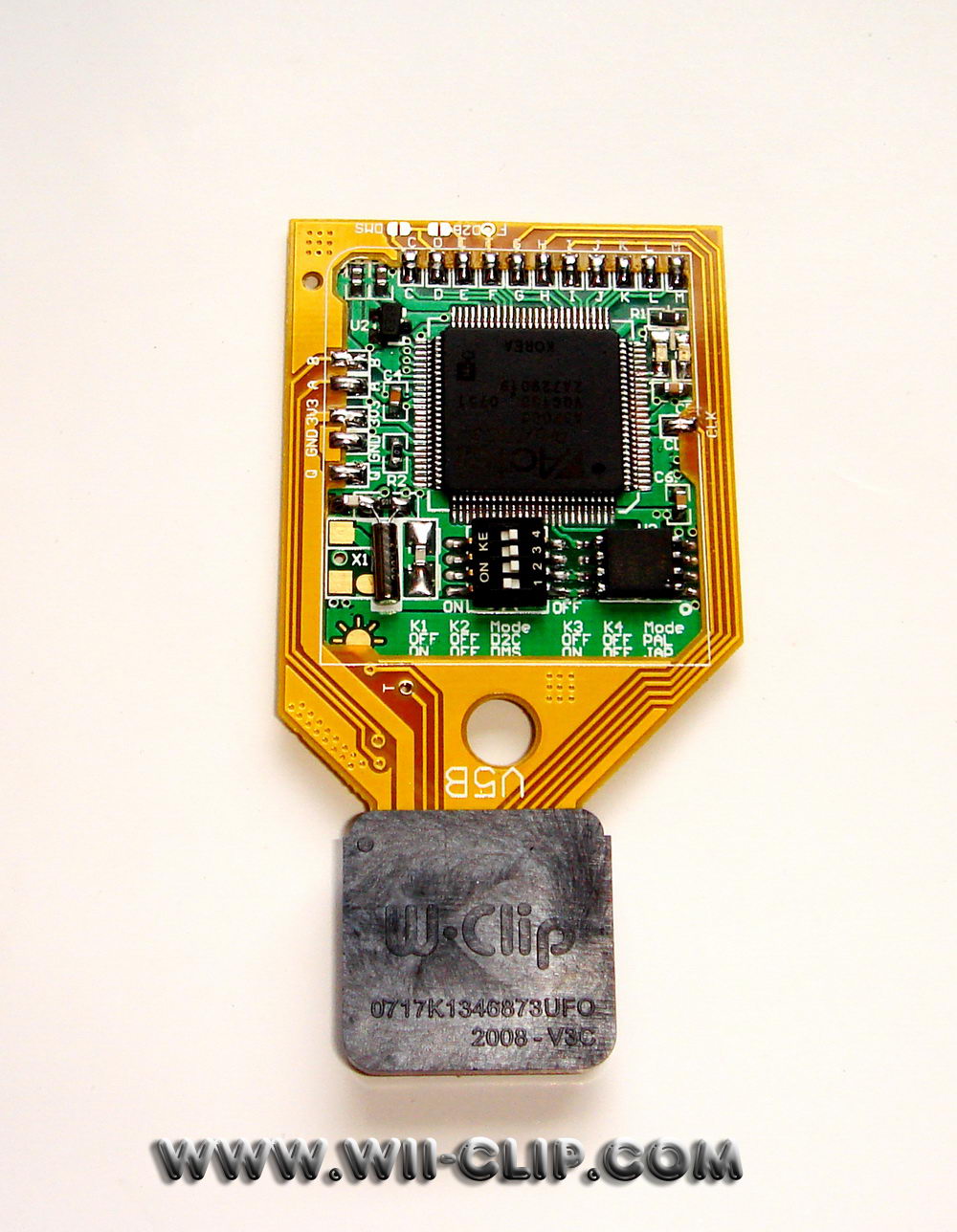

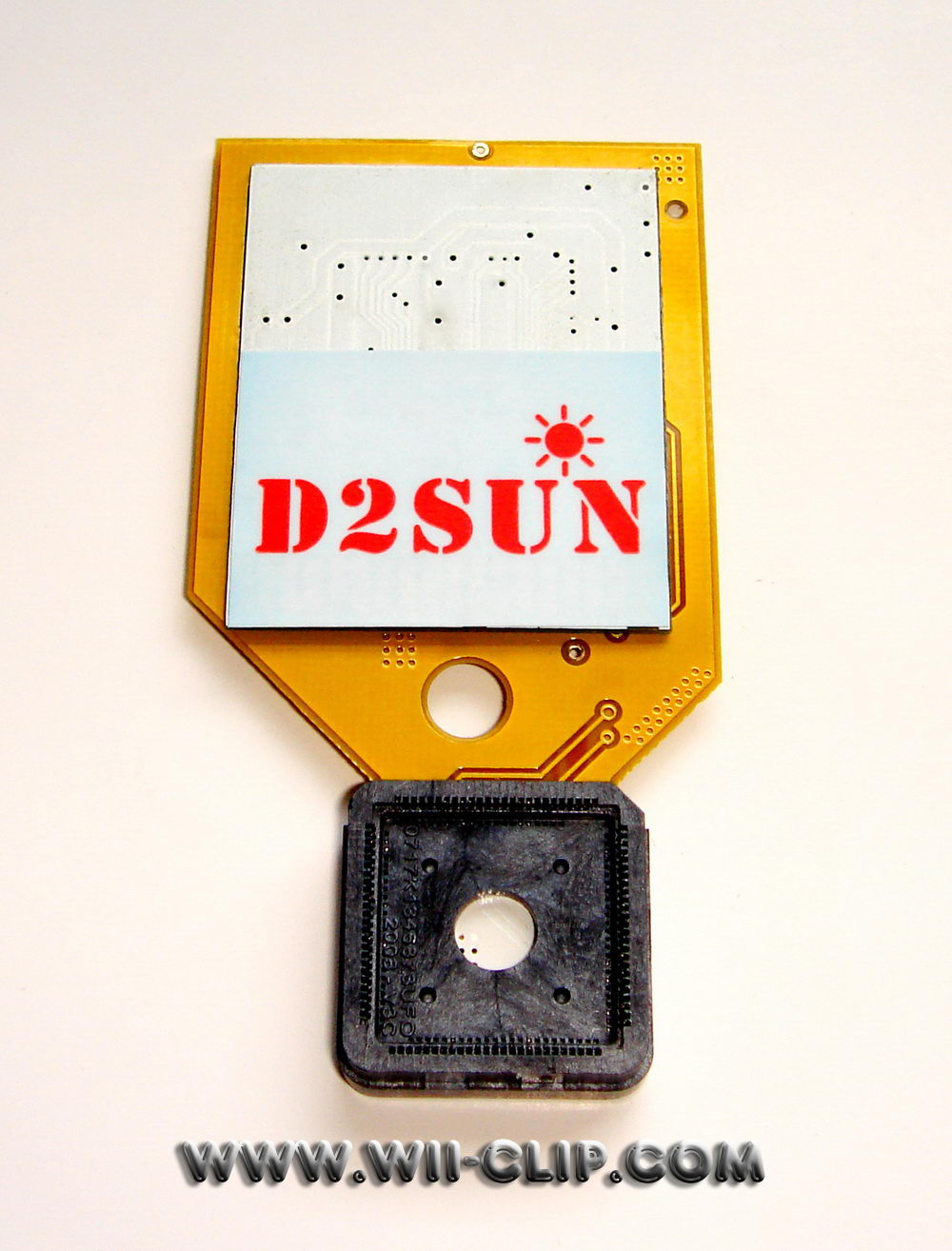

After soldered:

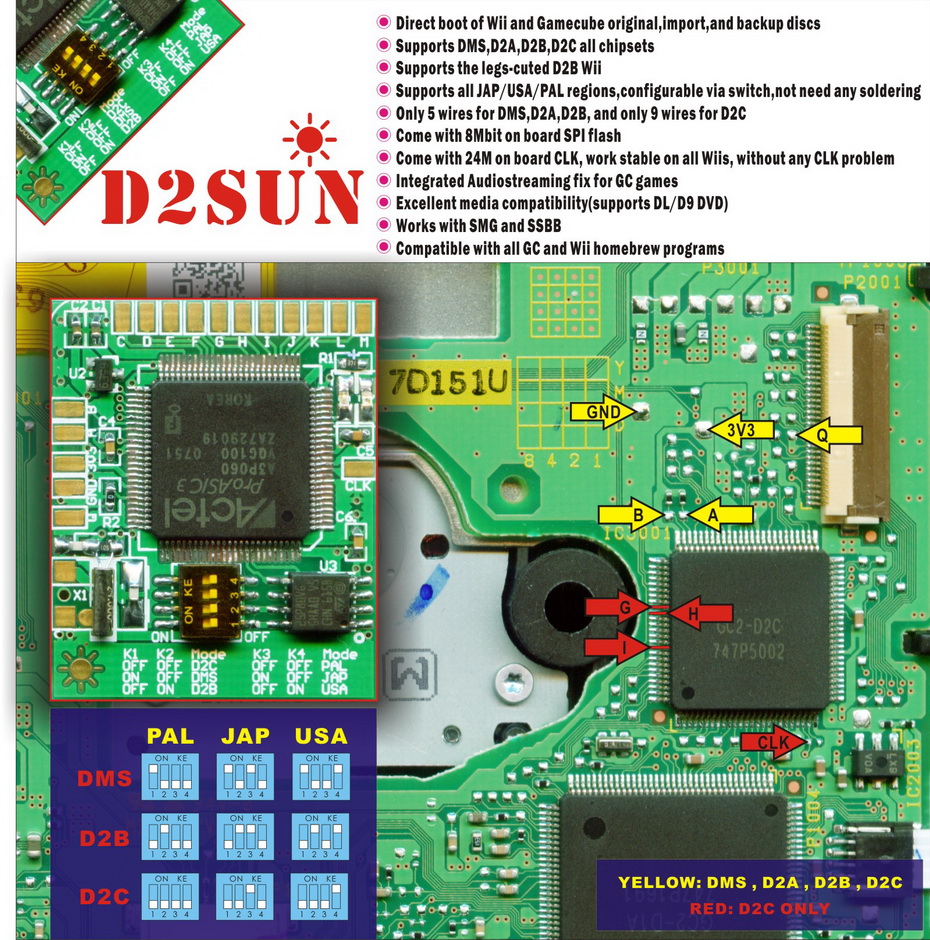

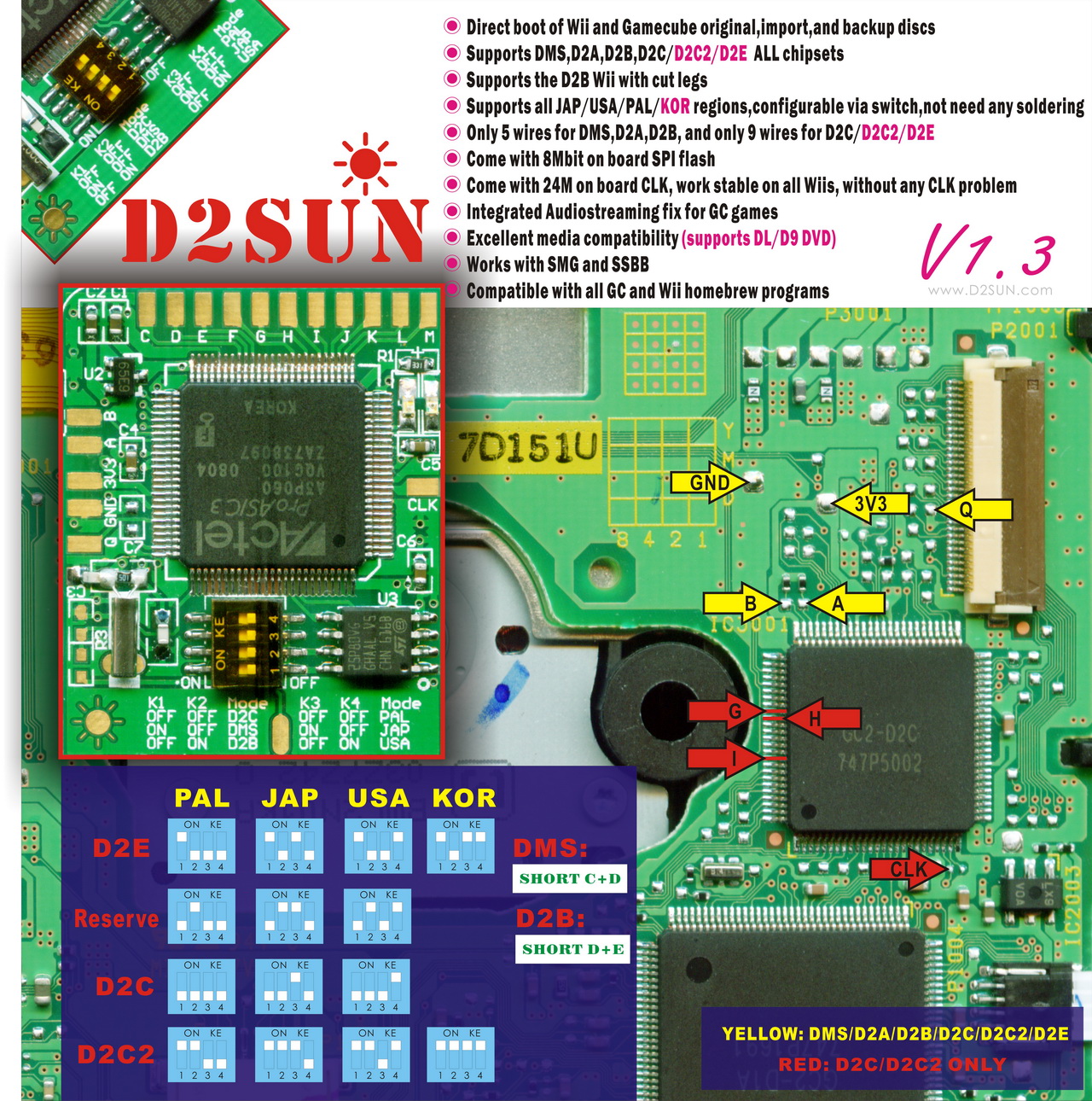

The old D2SUN V1.3 install diagram: 9 wires



How to adjust the D2SUN V1.3 to work with your WII:

  PAL JAP USA KOR
DMS & D2A
SHORT C+D K3 K4
OFF OFF
SHORT C+D K3 K4
ON OFF
SHORT C+D K3 K4
OFF ON

D2B
(Included cut-pins version)
SHORT D+E K3 K4
OFF OFF
SHORT D+E K3 K4
ON OFF
SHORT D+E K3 K4
OFF ON

D2C
K1 K2 K3 K4
OFF OFF OFF OFF
K1 K2 K3 K4
OFF OFF ON OFF
K1 K2 K3 K4
OFF OFF OFF ON

D2C2
K1 K2 K3 K4
ON ON OFF OFF
K1 K2 K3 K4
ON ON ON OFF
K1 K2 K3 K4
ON ON OFF ON
K1 K2 K3 K4
ON ON ON ON
D2E
K1 K2 K3 K4
ON OFF OFF OFF
K1 K2 K3 K4
ON OFF ON OFF
K1 K2 K3 K4
ON OFF OFF ON
K1 K2 K3 K4
ON OFF ON ON

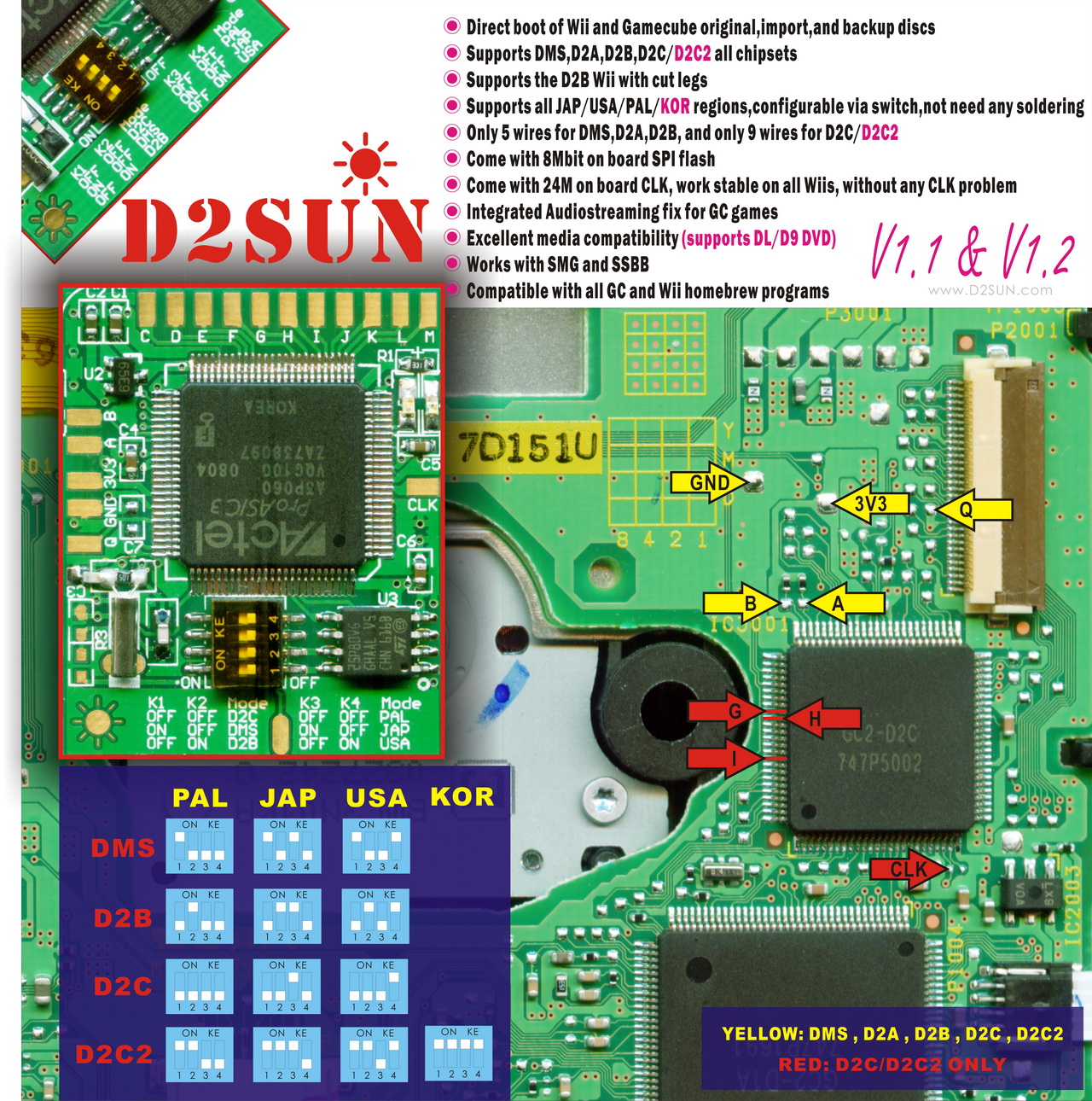

The old D2SUN V1.1 / V1.2 install diagram: 9 wires



How to adjust the D2SUN V1.1 / V1.2 to work with your WII:

  KOR PAL JAP USA
DMS & D2A
K1 K2 K3 K4
ON OFF OFF OFF
K1 K2 K3 K4
ON OFF ON OFF
K1 K2 K3 K4
ON OFF OFF ON
D2B
(Included cut-pins version)

K1 K2 K3 K4
OFF ON OFF OFF
K1 K2 K3 K4
OF ON ON OFF
K1 K2 K3 K4
OFF ON OFF ON
D2C
K1 K2 K3 K4
OFF OFF OFF OFF
K1 K2 K3 K4
OFF OFF ON OFF
K1 K2 K3 K4
OFF OFF OFF ON
D2C2
K1 K2 K3 K4
ON ON ON ON
K1 K2 K3 K4
ON ON OFF OFF
K1 K2 K3 K4
ON ON ON OFF
K1 K2 K3 K4
ON ON OFF ON

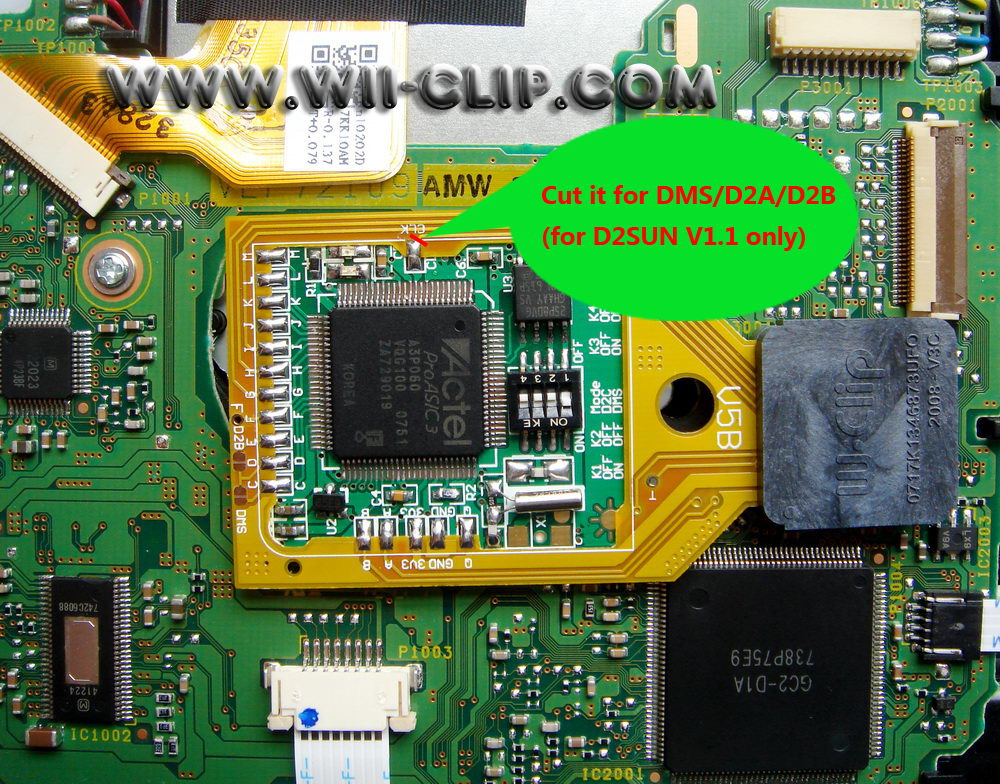

If you use V5B on the old DMS/D2A/D2B, remember cut the CLK line! This bug effect with V1.1 version only, V1.2 version don't have this issue.
If you use it on D2C,D2C2, please pass it.





The old D2SUN V1.0 install diagram: 9 wires

How to adjust the D2SUN v1.0 to work with your WII:

  PAL JAP USA
DMS & D2A
K1 K2 K3 K4
ON OFF OFF OFF
K1 K2 K3 K4
ON OFF ON OFF
K1 K2 K3 K4
ON OFF OFF ON
D2B
(Included cut-pins version)
K1 K2 K3 K4
OFF ON OFF OFF
K1 K2 K3 K4
OF ON ON OFF
K1 K2 K3 K4
OFF ON OFF ON
D2C
K1 K2 K3 K4
OFF OFF OFF OFF
K1 K2 K3 K4
OFF OFF ON OFF
K1 K2 K3 K4
OFF OFF OFF ON





The new WII-CLIP install diagram: Zero wire need solder, plug and play!





And V5B can support wasabi too:



The new WII-CLIP install diagram: need solder 1 wire from CLIP "F" to WII motherboard "F" if your wii is D2C version.

Other way should work too: solder "F" to "Q".











The retail packing:
