WII-CLIP V3 --->  Support WIIKEY / WIIKIT chips

Discuss : http://wiinewz.com/forums/wiikey/67863-wii-clip-v3-support-wiikey-wiikit-chips.html

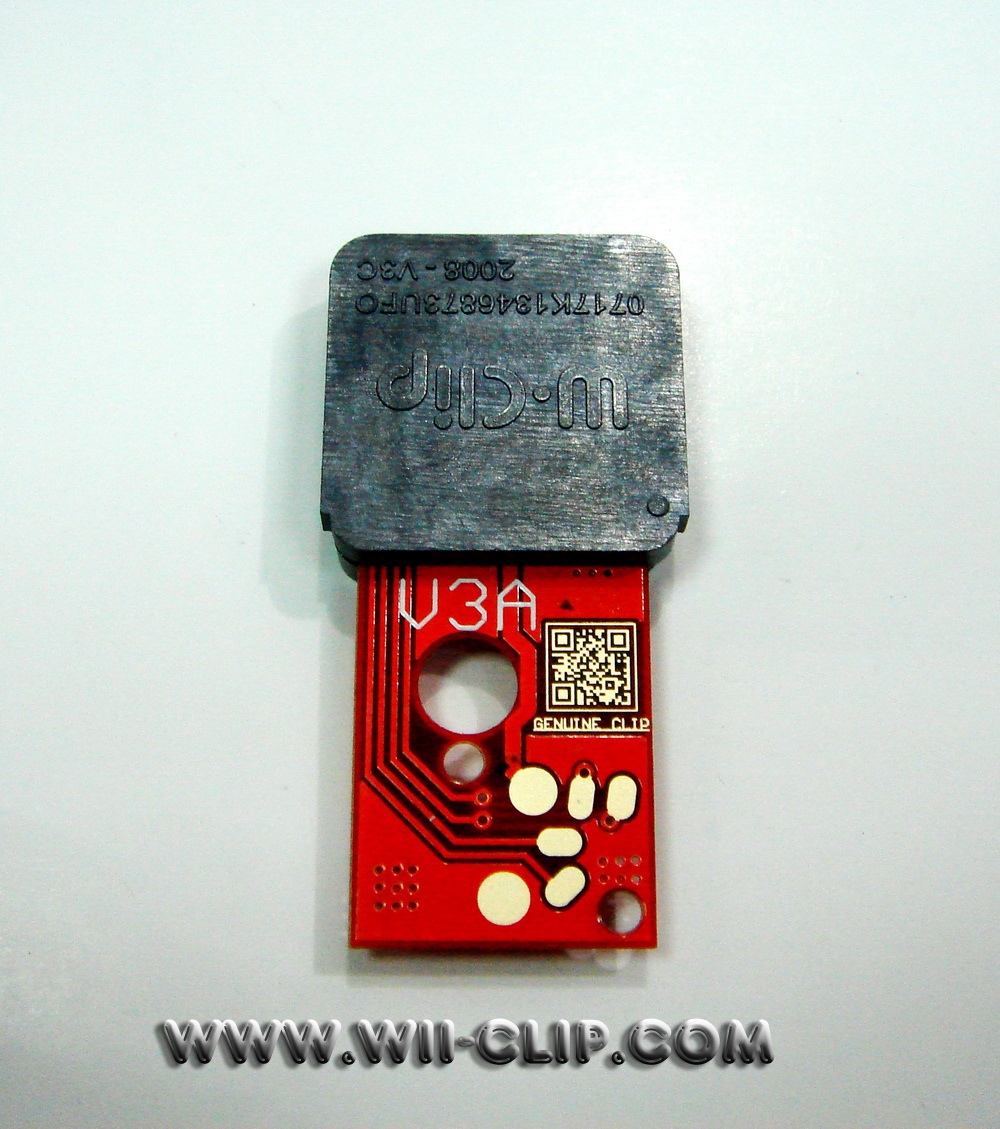

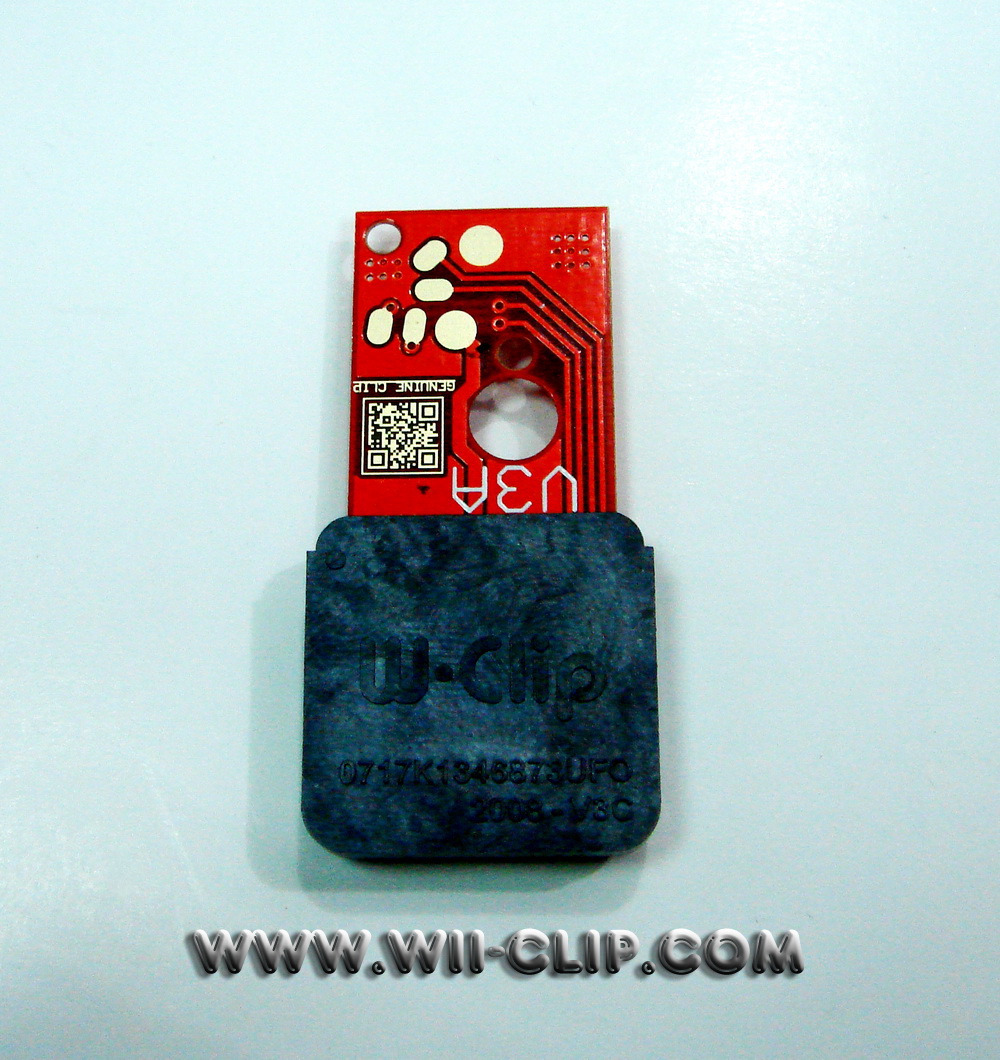

The last WII-CLIP V3A for Wiikey chip looking:

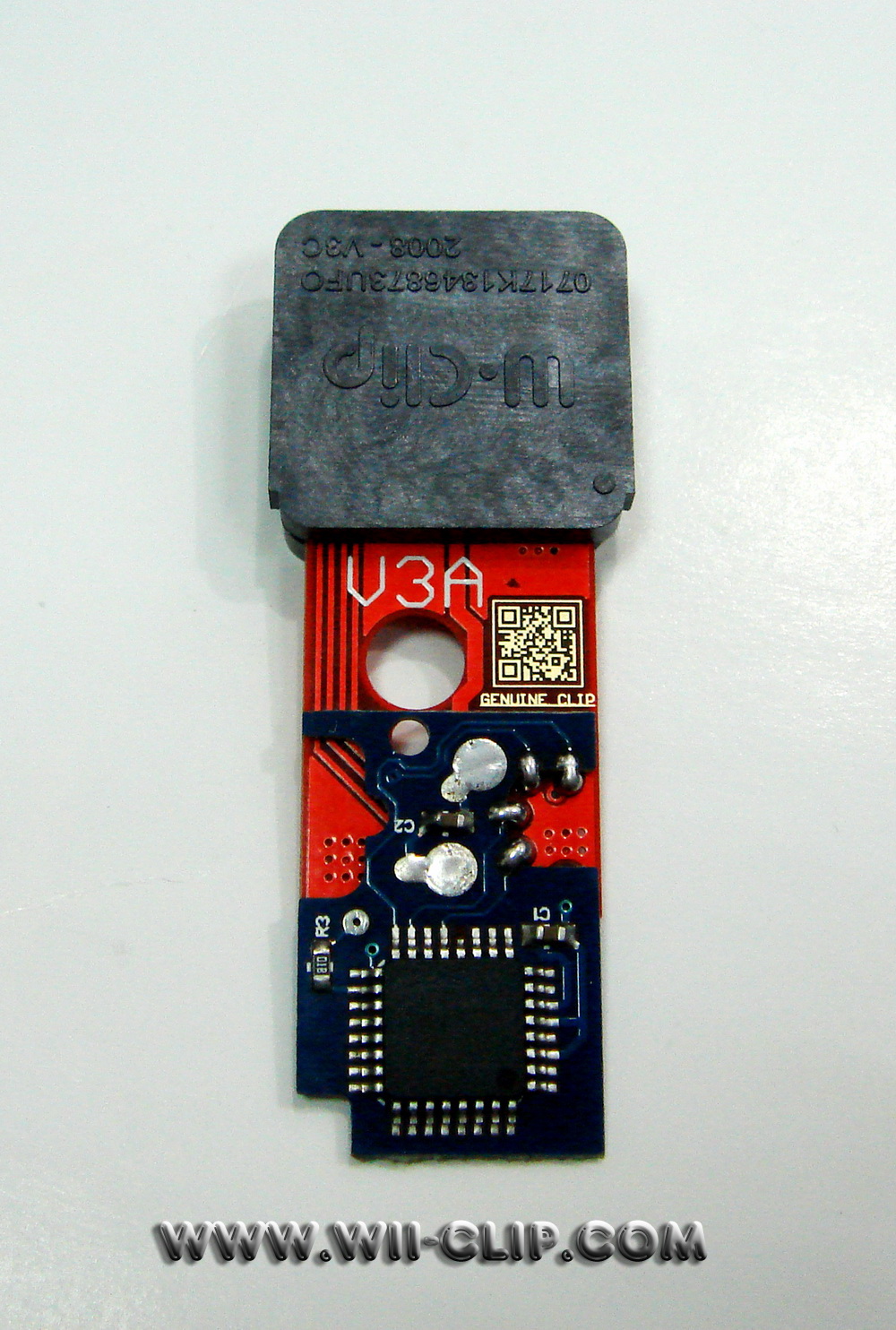

After Wiikey soldered:

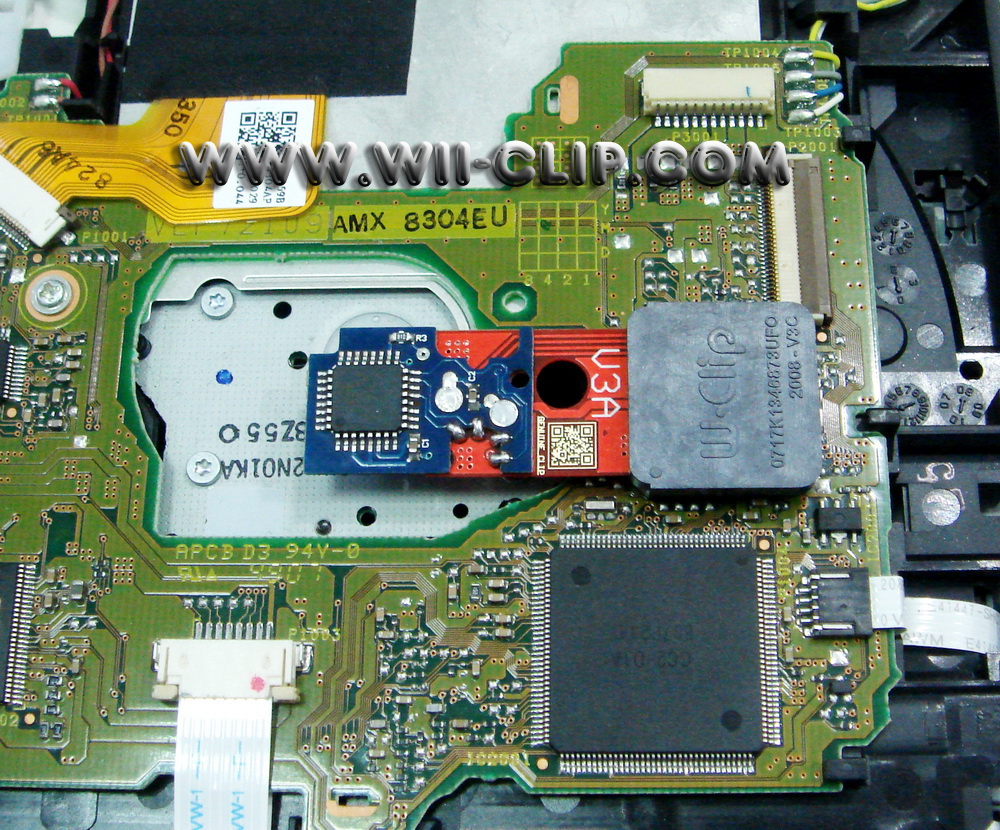

The new WII-CLIP V3A for Wiikey install diagram: Zero wire need solder, plug and play!

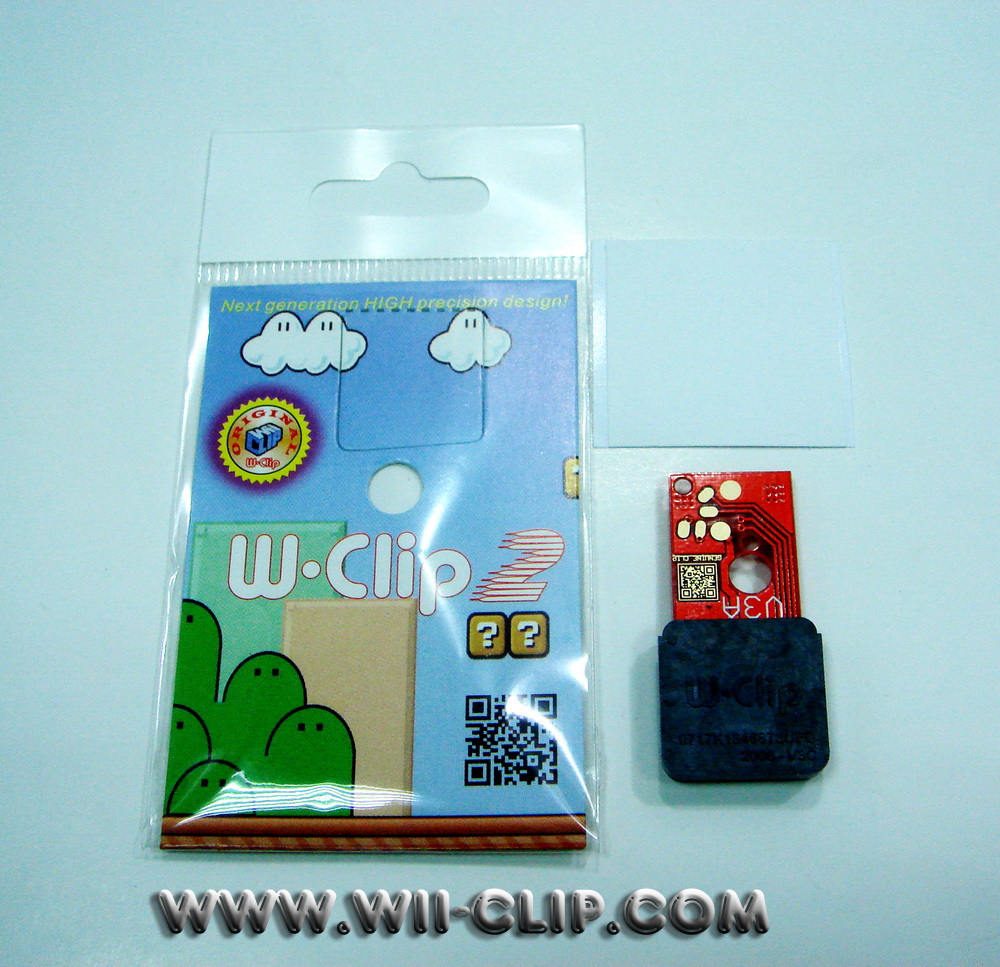

The retail packing:





===========================================================================================================

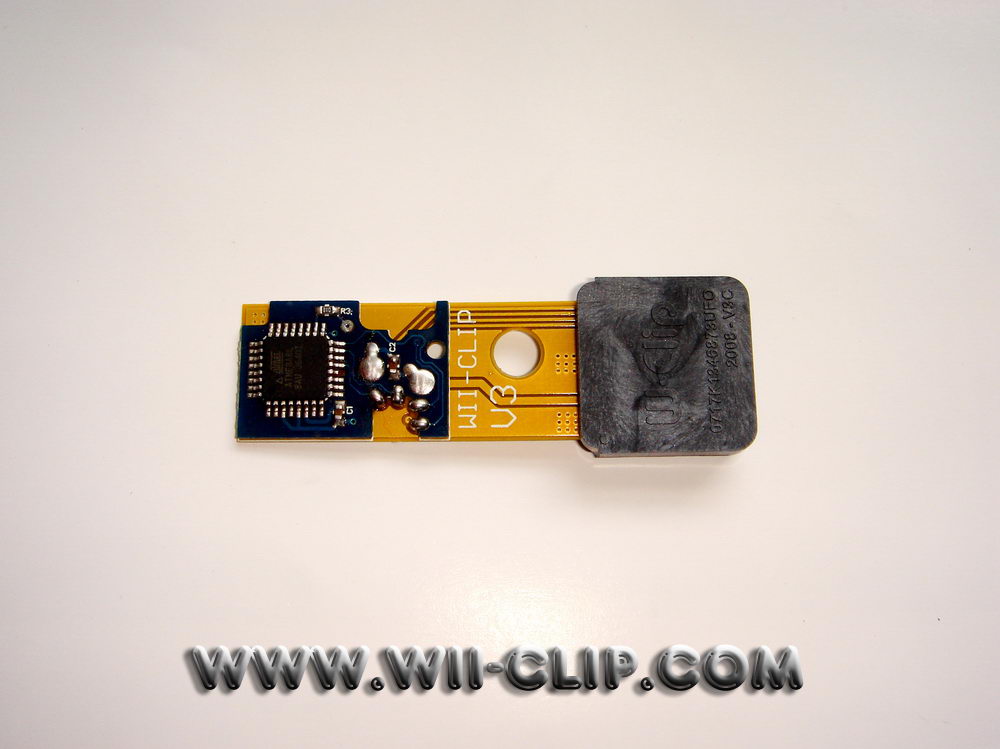

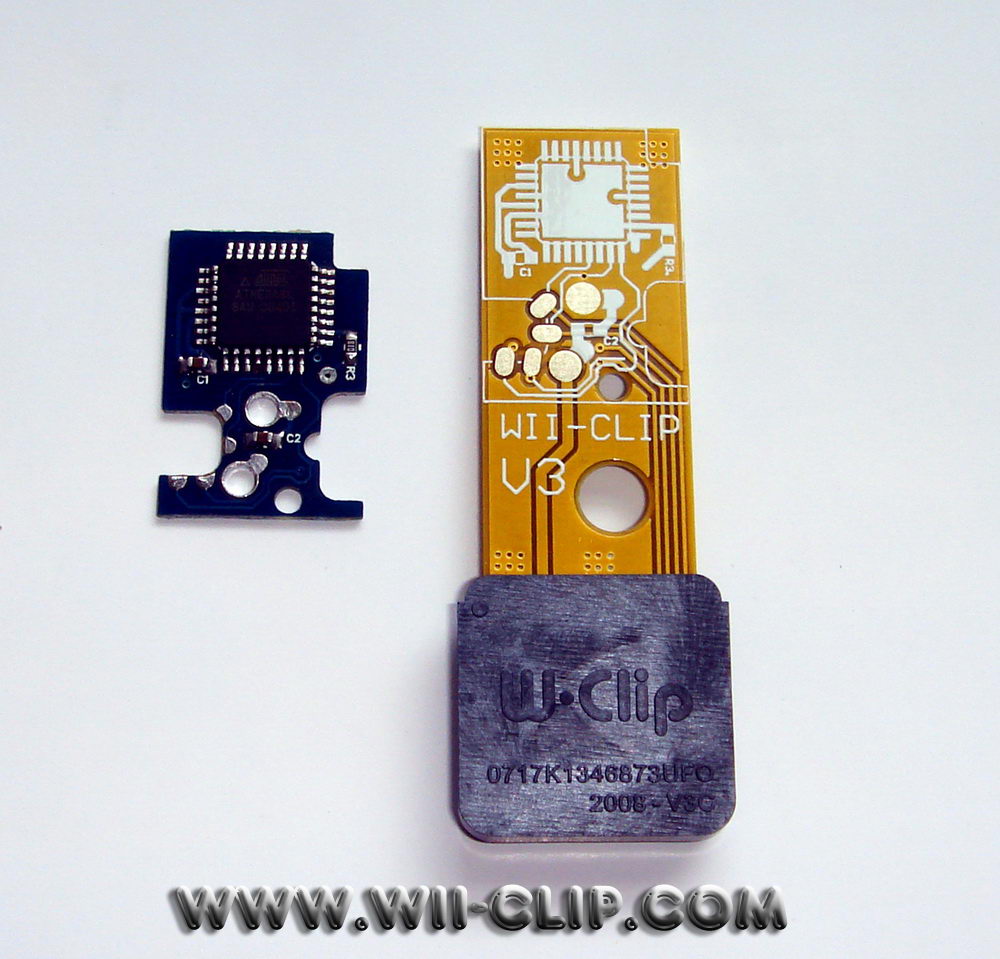

The KEY-CLIP looking

How to install:

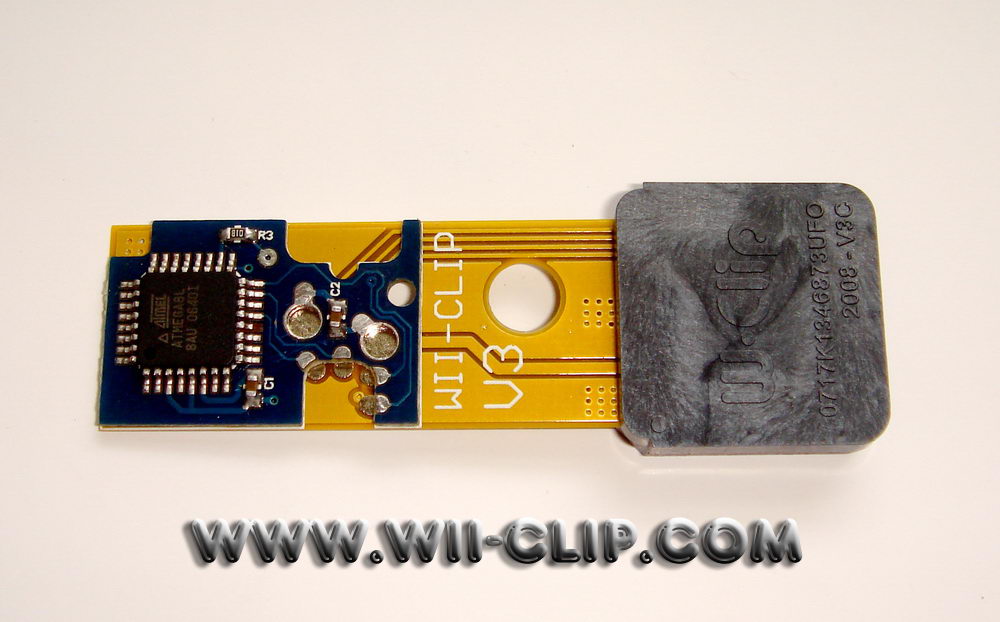

Step 1, line the WIIKEY onto the KEY-CLIP , and solder all pins.

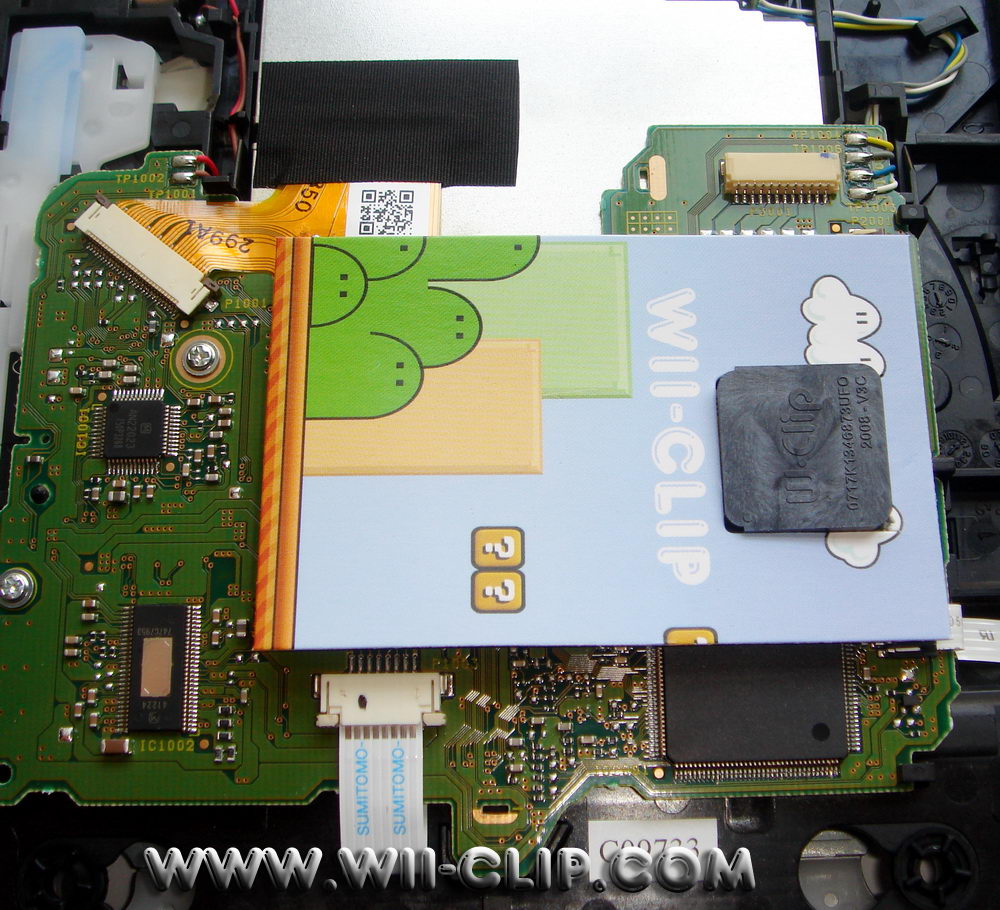

Step 2. Plug the KEY-CLIP onto the chipset.

Step 3. use the protection paper to cover the whole KEY-CLIP. Then all finished.

The retail packing:

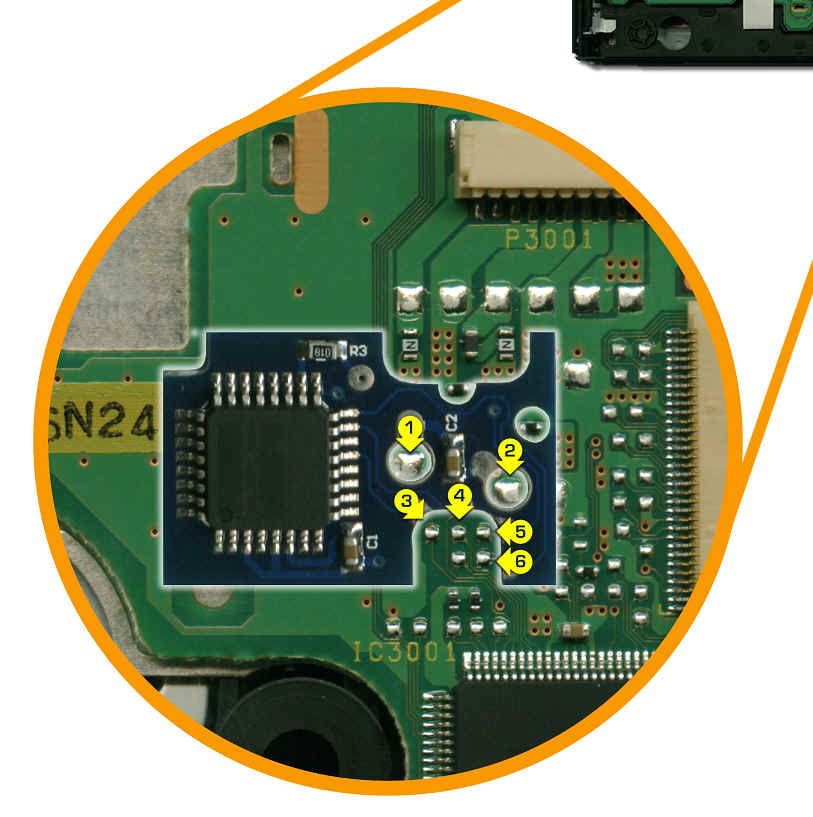

The old WIIKEY install diagram: 6 wires

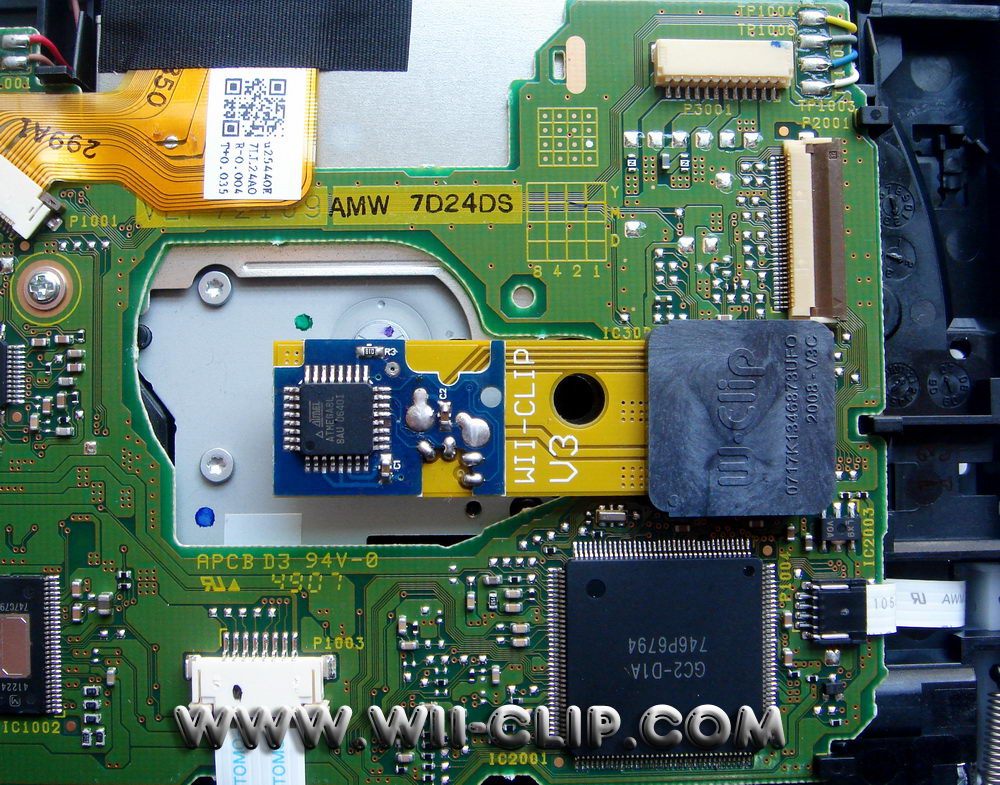

The new WII-CLIP install diagram: Plug and Play, 0 wires
