WII-CLIP V4C --->  Support D2pro 9 wires chip , in stock now.

Discuss : http://wiinewz.com/forums/d2pro/68733-wii-clip-v4c-support-d2pro-9-wires-chip-in-stock-now.html

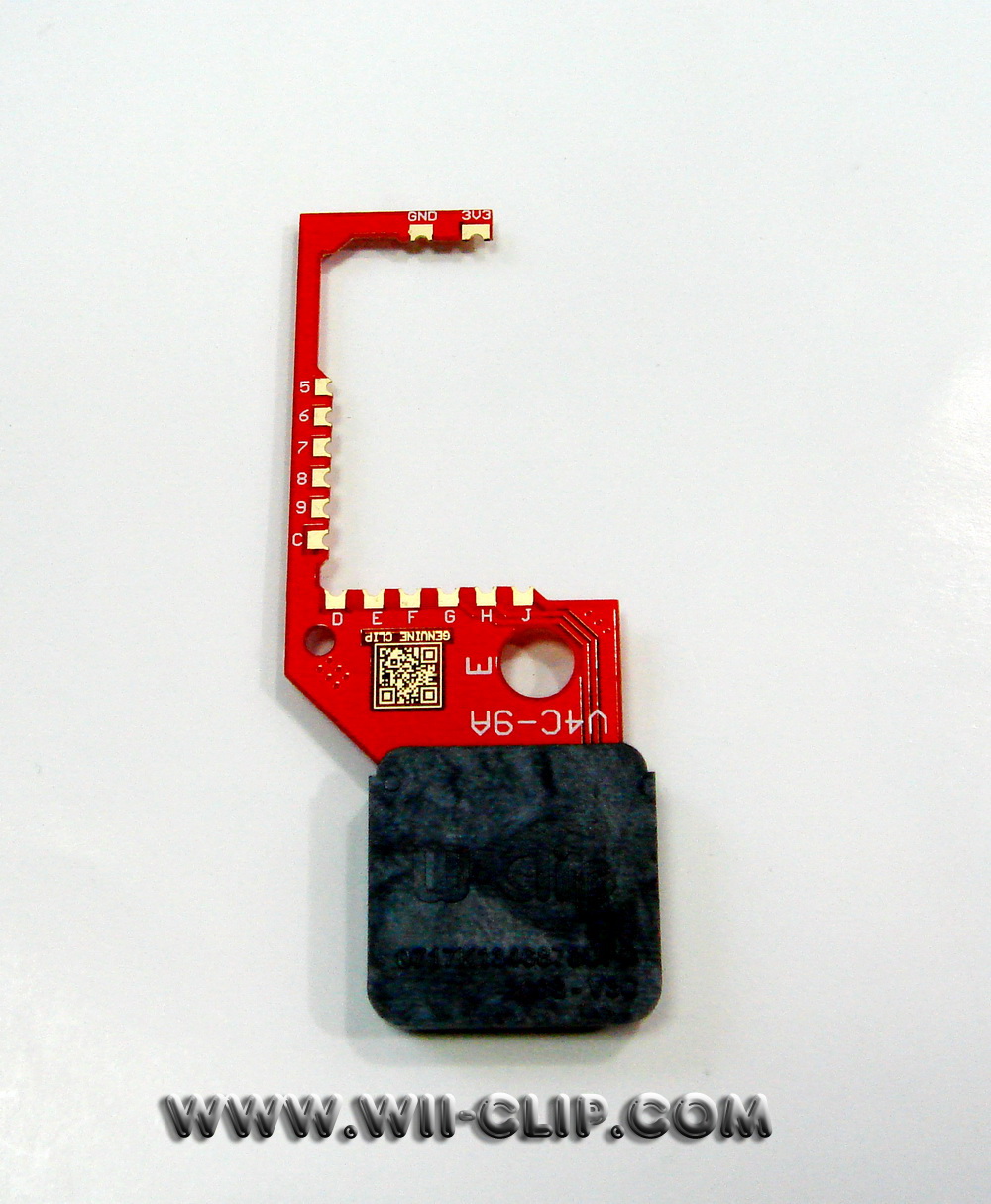

The last WII-CLIP V4C-9A for D2PRO chip looking:

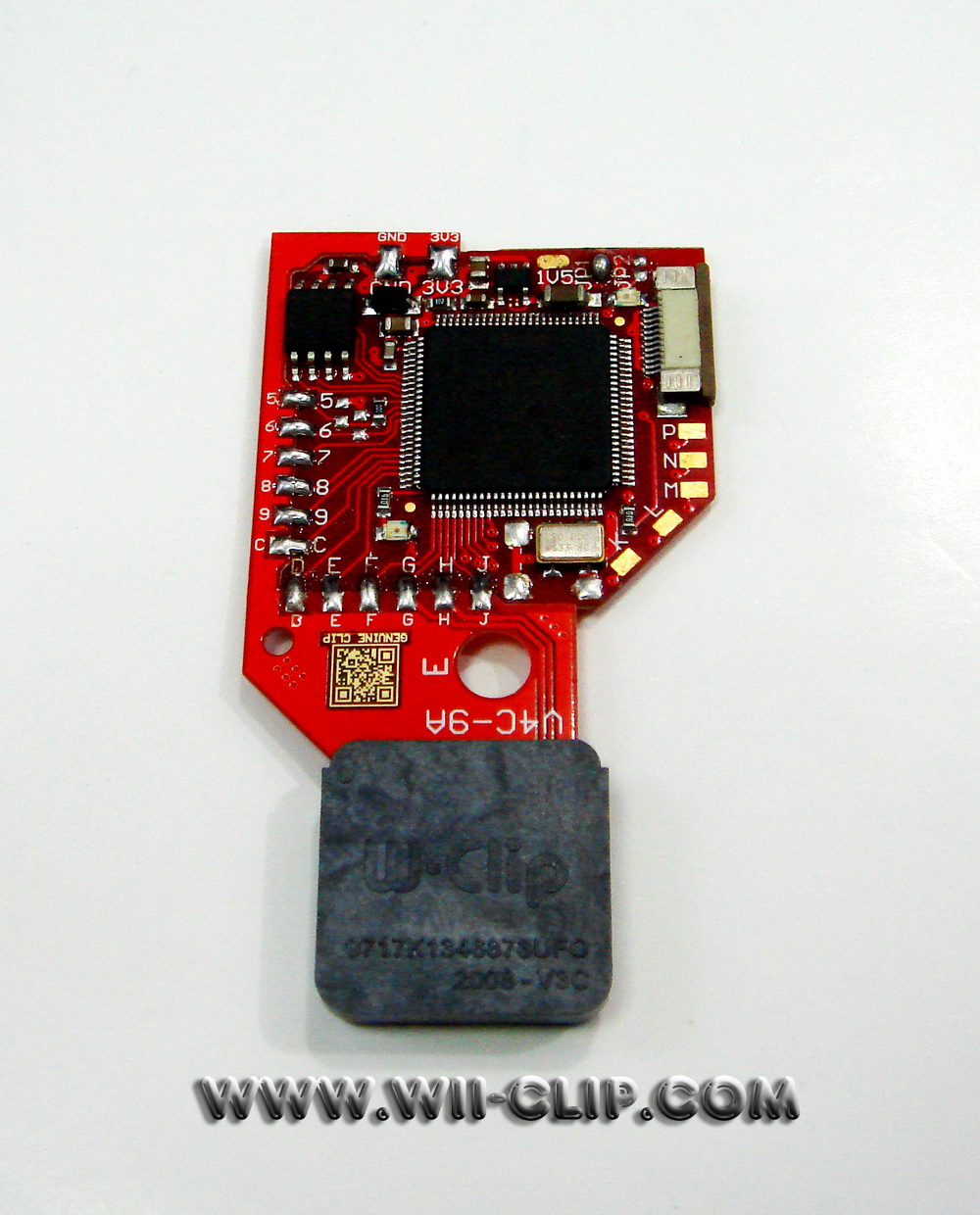

After D2PRO soldered:

The new WII-CLIP V4C-9A for D2PRO install diagram: Zero wire need solder, plug and play!

The retail packing:

===========================================================================================================

And it work with D2C2 too if you use the last D2Pro-9 chip!


The V4C looking:

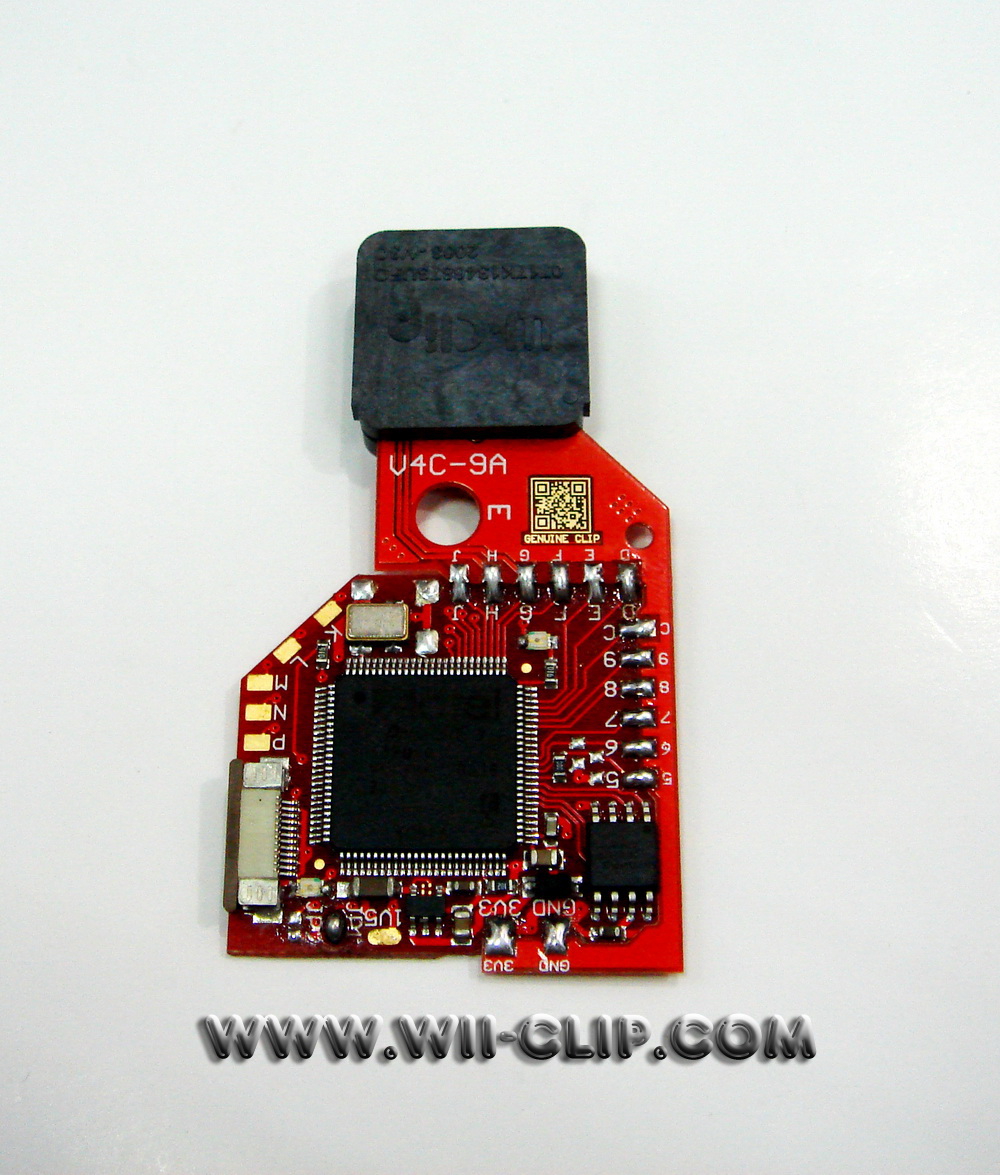

After soldered:

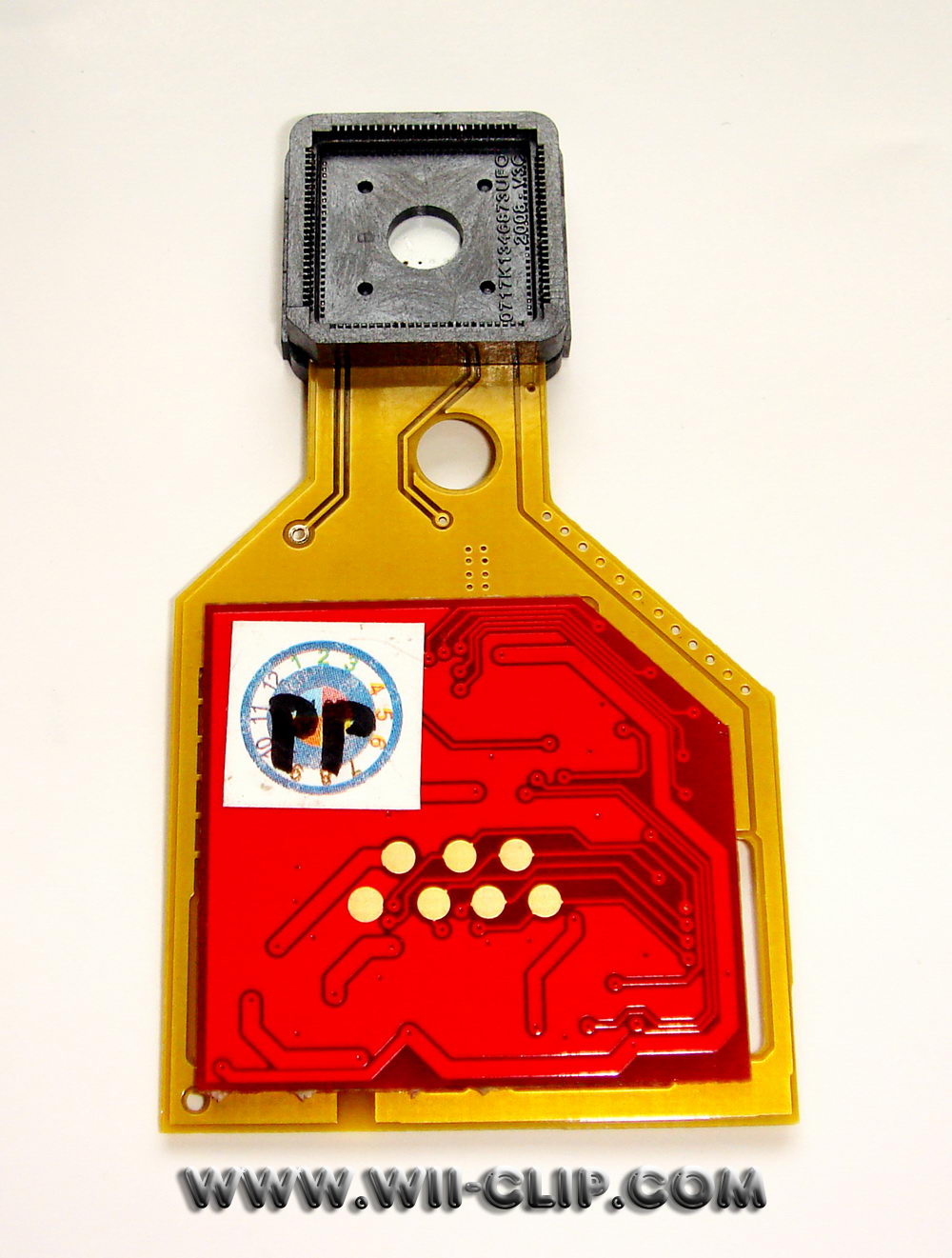

The back view:

The old D2Pro 9pin diagram: --- need solder the one wire from the CLIP "J" pin to the WII motherboard  "J" point:

The new V4C install diagram, firstly you just need short the "CLK" jumper, and test it, if it working fine, then  you don't need solder any extra wires again. This way should work with almost wii.

If this way don't work with you, please remove the "CLK" jumper and use one wire to link these 2 "J" points.

Warning: don't keep the "CLK" jumper and link 2 "J" points at the same time!

What come with the packing.

The retail packing.
